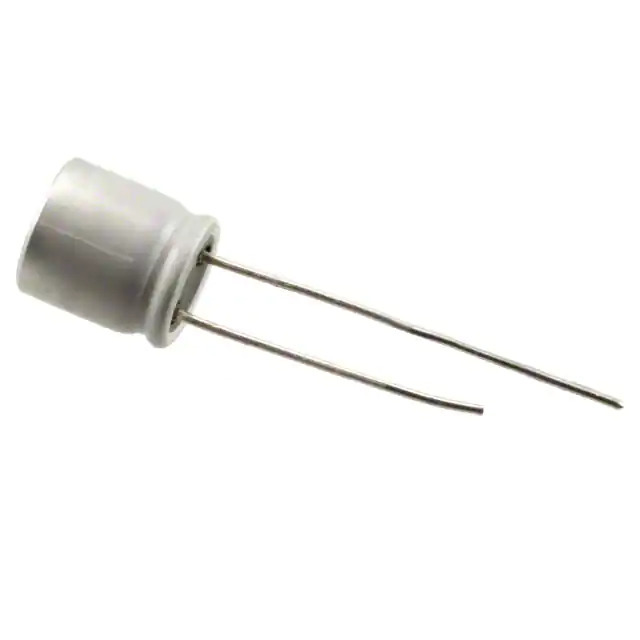

Same model may have multiple batches, images only for reference.
PLG1A561MCO1TD Nichicon
Same model may have multiple batches, images only for reference.

PLG1A561MCO1TD

Part No PLG1A561MCO1TD
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 10V T/H / 560 µF 10 V Aluminum - Polymer Capacitors Radial, Can 11mOhm 2000 Hrs @ 105°C
Datasheet
PLG1A561MCO1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PLG
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 11mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 5.1 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359483-PLG1A561MCO1TD
Ultra Librarian 3D Model Ultra Librarian PLG1A561MCO1TD CAD Model

Description

The PLG series polymer capacitor from Nichicon is a high-performance component designed for general-purpose applications.

  • Capacitance: 560 µF
  • Voltage Rating: 10 V
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • ESR: 11mOhm
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Diameter: 0.315" (8.00mm)
  • Height: 0.354" (9.00mm)
  • Lifetime: 2000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: Complies with ECCN regulations
  • Lifecycle Status: Active
