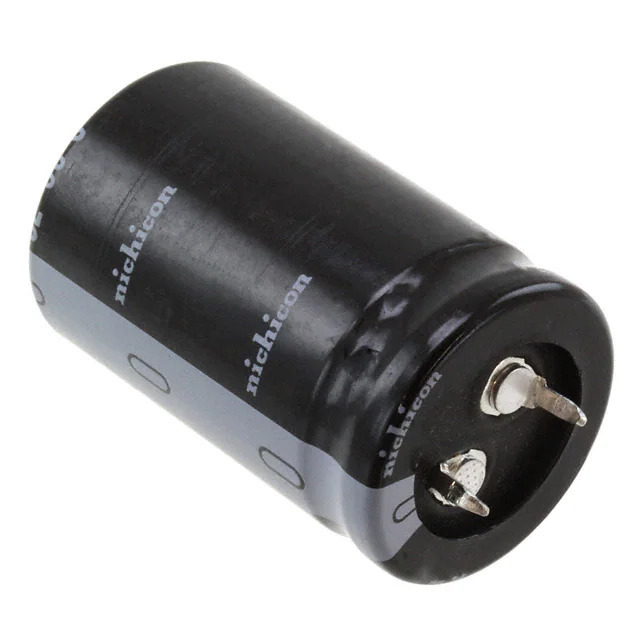

LLS2W221MELA Nichicon
Same model may have multiple batches, images only for reference.

LLS2W221MELA

Part No LLS2W221MELA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet
LLS2W221MELA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLS
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.59 A @ 120 Hz
Ripple Current @ High Frequency 2.2737 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360698-LLS2W221MELA
Ultra Librarian 3D Model Ultra Librarian LLS2W221MELA CAD Model

Description

The 1360698-LLS2W221MELA is an aluminum electrolytic capacitor from Nichicon's LLS series.

  • Capacitance: 220 µF
  • Voltage Rating: 450 V
  • Application: General-Purpose
  • Temperature Range: -25°C to 85°C
  • Lifetime: 3000 hours @ 85°C
  • Series: LLS
  • Package: Radial, Can-Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 0.984" Dia (25.00mm)
  • ESR (Equivalent Series Resistance): Not Specified
  • Ripple Current (Low Frequency): 1.59 A @ 120 Hz
  • Ripple Current (High Frequency): 2.2737 A @ 50 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarity: Polarized
