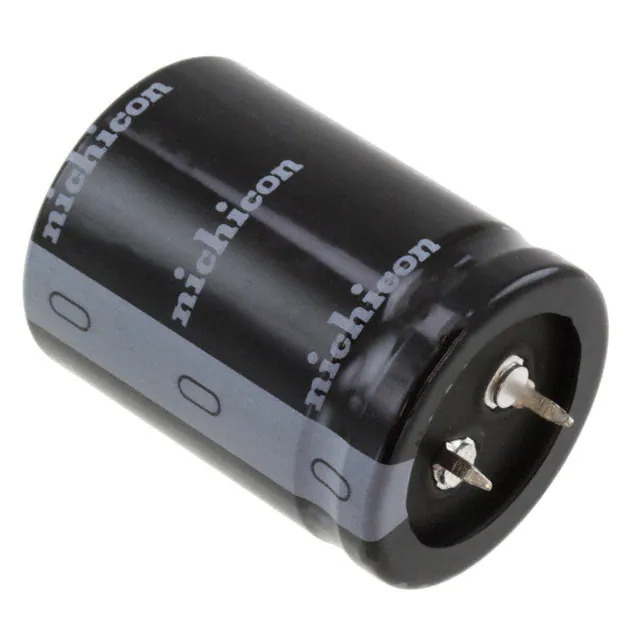

LLS2E102MELB Nichicon
Same model may have multiple batches, images only for reference.

LLS2E102MELB

Part No LLS2E102MELB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 250V SNAP / 1000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet
LLS2E102MELB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLS
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 3.56 A @ 120 Hz
Ripple Current @ High Frequency 5.34 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360665-LLS2E102MELB
Ultra Librarian 3D Model Ultra Librarian LLS2E102MELB CAD Model

Description

The LLS2E102MELB is an aluminum electrolytic capacitor from Nichicon's LLS series.

  • Series: LLS
  • Capacitance: 1000 μF
  • Voltage Rating: 250 V
  • Application: General Purpose
  • Temperature Range: -40°C to 85°C
  • Lifetime: 3000 hours @ 85°C
  • Ripple Current: 3.56 A @ Low Frequency (120 Hz), 5.34 A @ High Frequency (50 kHz)
  • Mounting Type: Through Hole
  • Package: Radial, Can - Snap-In
  • Lead Spacing: 10.00mm
  • Status: Active
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
