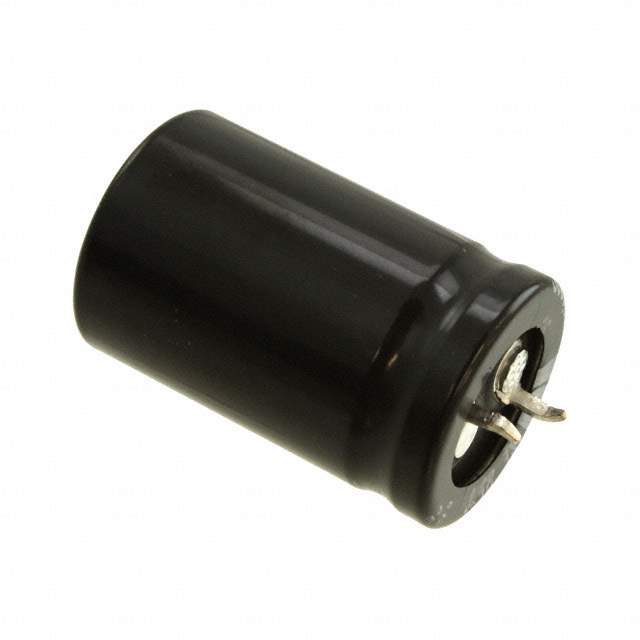

Same model may have multiple batches, images only for reference.

LLS1E103MELZ

Name: LLS1E103MELZ
Brand: Nichicon
SKU: 1351626
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLS1E103MELZ
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10000UF 20% 25V SNAP / 10000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS1E103MELZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Capacitance	10000 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.31 A @ 120 Hz
Ripple Current @ High Frequency	3.8065 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	250
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1351626-LLS1E103MELZ
Ultra Librarian 3D Model	Ultra Librarian LLS1E103MELZ CAD Model

Description

The LLS series aluminum electrolytic capacitor is a high-quality component that is ideal for use in various electronic applications. With a capacitance of 10000 µF and a voltage rating of 25 V, this capacitor is designed to provide a stable capacitance value and is ideal for use in circuits that require high-quality capacitors. The capacitor is manufactured by Nichicon.

Capacitance: 10000 µF
Voltage Rating: 25 V
Ripple Current: 3.31 A @ 120 Hz, 3.8065 A @ 50 kHz
Lifetime: 3000 hours @ 85°C
