Same model may have multiple batches, images only for reference.

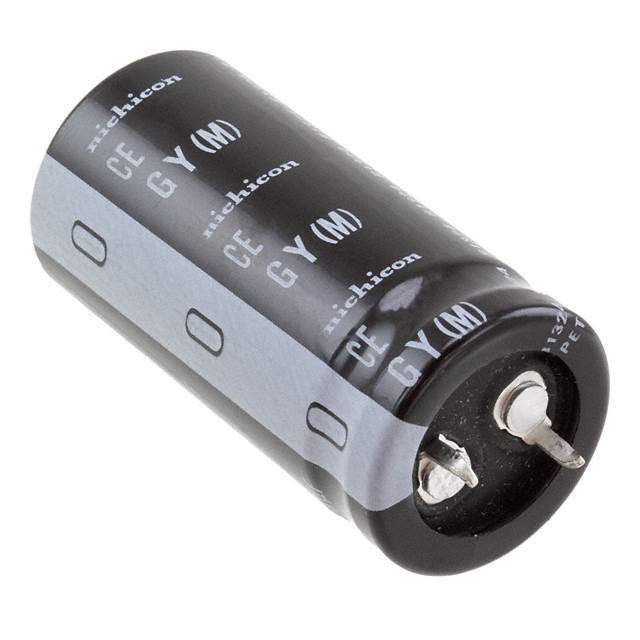

LGY1E123MELZ45 Real Image
Same model may have multiple batches, images only for reference.

LGY1E123MELZ45

Part No LGY1E123MELZ45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 12000UF 20% 25V SNAP / 12000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Datasheet
LGY1E123MELZ45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGY
Package Bulk
Capacitance 12000 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.6 A @ 120 Hz
Ripple Current @ High Frequency 2.99 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1341436-LGY1E123MELZ45
Ultra Librarian 3D Model Ultra Librarian LGY1E123MELZ45 CAD Model

Description

The LGY1E123MELZ45 is an aluminum electrolytic capacitor from Nichicon.

  • Application: General Purpose
  • Standard Package: 250
  • Capacitance: 12000 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Ripple Current: 2.6 A @ 120 Hz and 2.99 A @ 50 kHz
  • Package: Radial, Can-Snap-In
  • Operating Temperature: -40°C to 105°C
  • REACH: Unaffected
