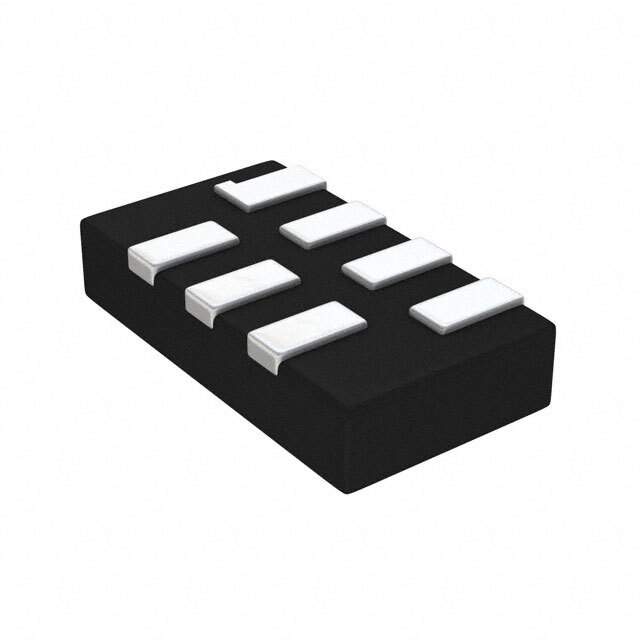

PUSB3FR6Z Real Image
Same model may have multiple batches, images only for reference.

PUSB3FR6Z

Part No PUSB3FR6Z
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 3VC 7XSON / 3V (Typ) Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 7-XSON (1.1x2.1)
Datasheet
PUSB3FR6Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 6
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 3V (Typ)
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 7-XFDFN
Supplier Device Package 7-XSON (1.1x2.1)
Base Product Number PUSB3FR6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 568-12155-6,568-12155-6-ND,568-12155-2-ND,1727-2027-2,934068777471,568-12155-1-ND,1727-2027-1,568-12155-2,1727-2027-6,568-12155-1
Standard Package 4,000
Win Source Part Number 964659-PUSB3FR6Z
Ultra Librarian 3D Model Ultra Librarian PUSB3FR6Z CAD Model

Description

The Nexperia USA Inc. electronic component with Win Source Part Number 964659-PUSB3FR6Z is a Zener type TVS diode that comes in tape and reel packaging with a standard package of 4,000.

  • Manufacturer: Nexperia USA Inc.
  • Win Source Part Number: 964659-PUSB3FR6Z
  • Type: Zener TVS diode
  • Packaging: Tape and reel
  • Standard Package: 4,000
  • Channels: 6 Unidirectional
  • Voltage Reverse Standoff: 3.3V (Max)
  • Voltage Breakdown Minimum: 6V
  • Voltage Clamping Maximum @ Ipp: 3V (Typ)
  • Current Peak Pulse: 5A (8/20µs)
  • Mounting: SMD (SMT)
  • Base Product Number: PUSB3FR6
