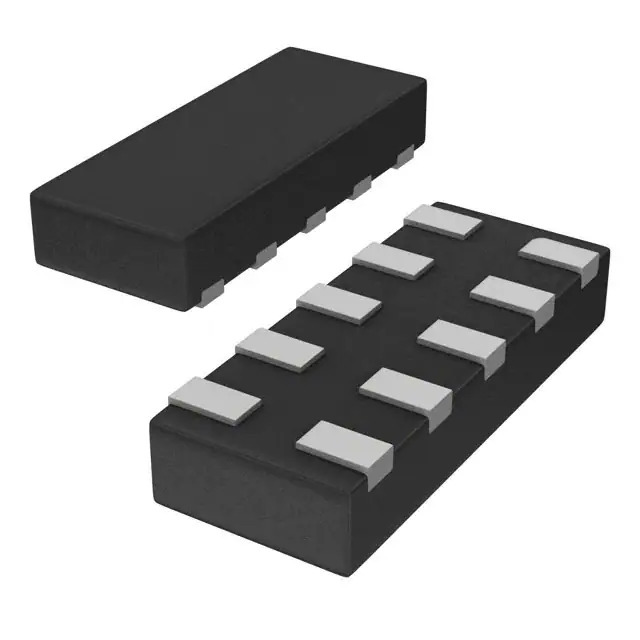

Same model may have multiple batches, images only for reference.
PUSB3F99X Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PUSB3F99X

Part No PUSB3F99X
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 4.6VC DFN2510A-10 / 4.6V (Typ) Clamp 5.2A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet
PUSB3F99X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) -
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 4.6V (Typ)
Current - Peak Pulse (10/1000µs) 5.2A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications HDMI, USB
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 10-XFDFN
Supplier Device Package DFN2510A-10
Base Product Number PUSB3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362408-PUSB3F99X
Ultra Librarian 3D Model Ultra Librarian PUSB3F99X CAD Model

Description

The PUSB3F99X is a transient voltage suppressor diode in a 10-XFDFN package.

  • Voltage Breakdown: 6V
  • Clamping Voltage: 4.6V
  • Peak Pulse Current: 5.2A
  • Capacitance: 0.5pF @ 1MHz
  • Temperature Range: -40°C to 85°C
  • Mounting Type: Surface Mountable
  • Package: Tape and Reel
