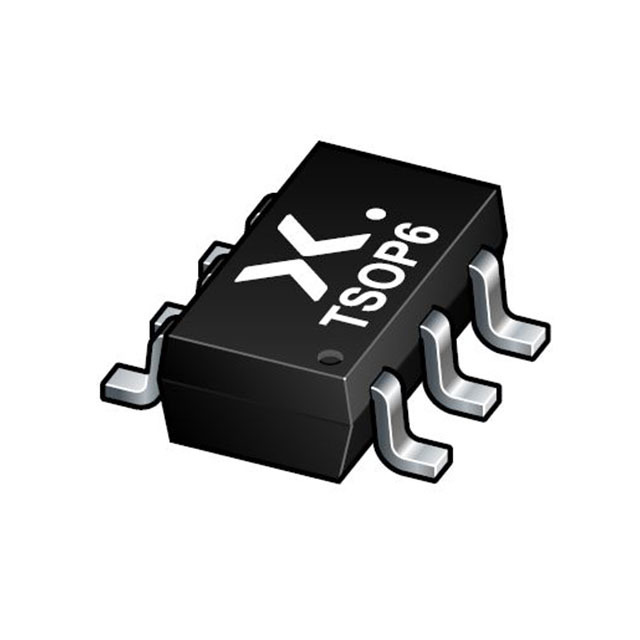

PMN40SNAX

Name: PMN40SNAX
Brand: Nexperia USA Inc.
SKU: WS1332004
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMN40SNAX
Manufacturer	Nexperia USA Inc.
Catalog	FETs - Single
Description	MOSFET N-CH 60V 4.7A 6TSOP
Datasheet	PMN40SNAX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr	Nexperia USA Inc.
Series	TrenchMOS?
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	36mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	453 pF @ 30 V
Power Dissipation (Max)	1.8W
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
Base Product Number	PMN40
Ultra Librarian 3D Model	Ultra Librarian PMN40SNAX CAD Model
