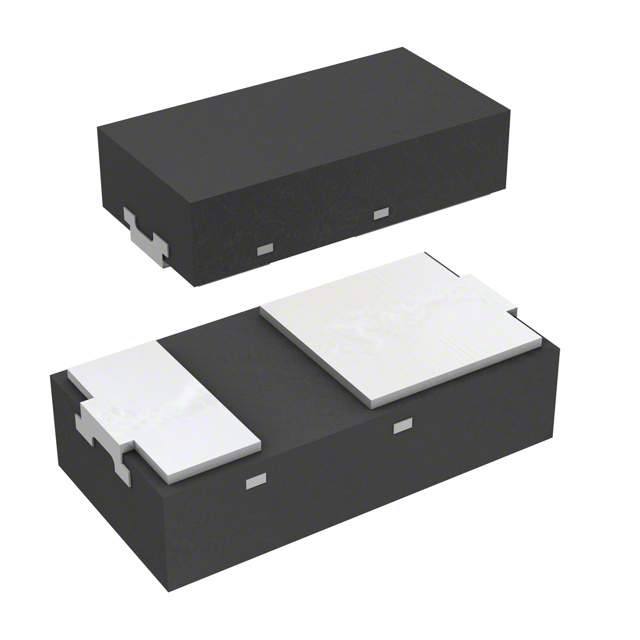

PMEG4005EPK,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG4005EPK,315

Part No PMEG4005EPK,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 500MA 2DFN
Datasheet
PMEG4005EPK,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 590mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 2ns
Current - Reverse Leakage @ Vr 2μA @ 10V
Capacitance @ Vr, F 35pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1608D-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089613-PMEG4005EPK,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMEG4005EPK,315 CAD Model

Description

The Nexperia USA Inc. PMEG4005EPK,315 is a Schottky diode with a maximum DC reverse voltage of 40V and an average rectified current of 500mA. It has a reverse recovery time of 2ns and a current reverse leakage of 2μA @ 10V.

  • Capacitance: 35pF @ 1V, 1MHz
  • Case/Package: DFN1608D-2
  • Maximum Junction Temperature: 150°C
  • Recovery Speed: 200mA (Io)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Product Category: Discrete Semiconductor Products
  • Mounting Technology: Surface-Mount Technology (SMT)
