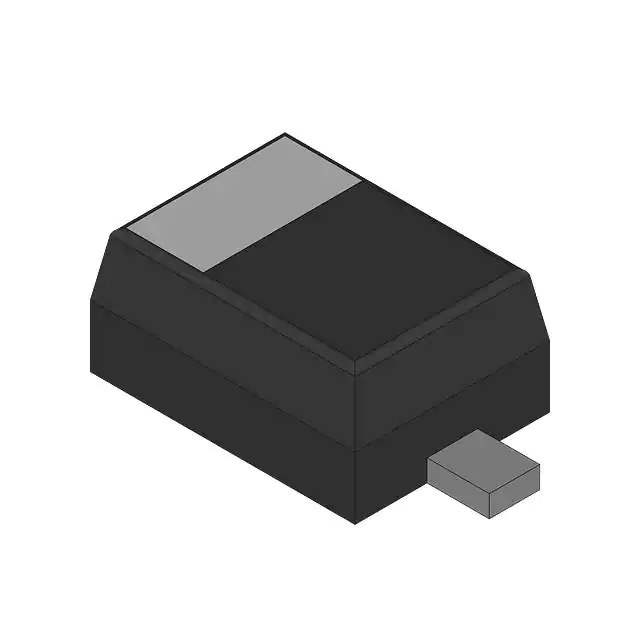

PMEG1030EH Real Image
Same model may have multiple batches, images only for reference.

PMEG1030EH

Part No PMEG1030EH
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 10V 3A SOD123F / Diode 10 V 3A Surface Mount SOD-123F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Package Bulk
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 10 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 530 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 3 mA @ 10 V
Capacitance @ Vr, F 85pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Operating Temperature - Junction 150°C (Max)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 656248-PMEG1030EH
Ultra Librarian 3D Model Ultra Librarian PMEG1030EH CAD Model

Description

The PMEG1030EH is a fast recovery Schottky diode that is commonly used in rectifier circuits.

  • Maximum Reverse Voltage Rating: 10V
  • Average Rectified Current Rating: 3A
  • Forward Voltage Drop: 530mV @ 3A
  • Reverse Leakage Current: 3mA @ 10V
  • Capacitance: 85pF @ 1V, 1MHz
  • Package: SOD-123F
  • Manufacturer: Nexperia USA Inc.
