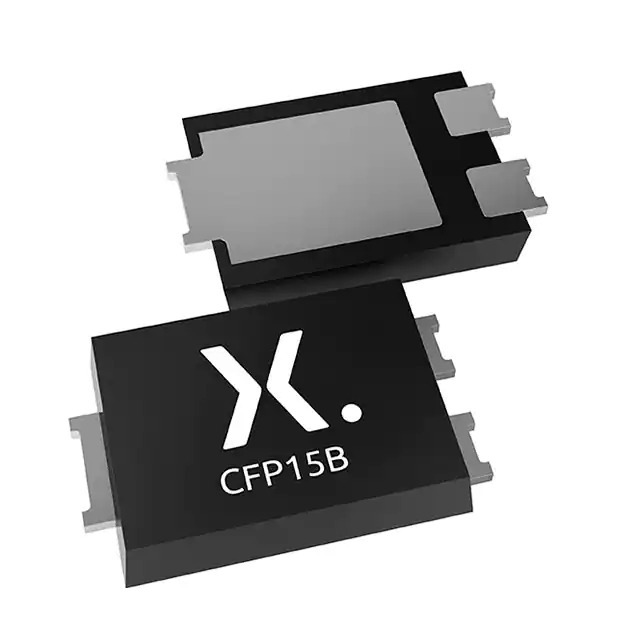

PMEG100V080ELPDAZ

Name: PMEG100V080ELPDAZ
Brand: Nexperia USA Inc.
SKU: 1367110
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG100V080ELPDAZ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V 8A CFP15
Datasheet	PMEG100V080ELPDAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Not For New Designs
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	850 mV @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10 ns
Current - Reverse Leakage @ Vr	1 µA @ 100 V
Capacitance @ Vr, F	110pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1367110-PMEG100V080ELPDAZ
Ultra Librarian 3D Model	Ultra Librarian PMEG100V080ELPDAZ CAD Model

Alternative Products

Description

The PMEG100V080ELPDAZ is a high-speed Schottky diode designed for rectification applications and manufactured by Nexperia USA Inc.

Maximum Junction Temperature: 175°C
Package: TO-277, 3-PowerDFN
Mounting Type: Surface Mount
Maximum Reverse Voltage: 100V
Average Rectified Current: 8A
Forward Voltage: 850mV @ 8A
Reverse Recovery Time: 10ns
Reverse Leakage Current: 1µA @ 100V
Capacitance: 110pF @ 10V and 1MHz
REACH: Unaffected
ECCN: EAR99
