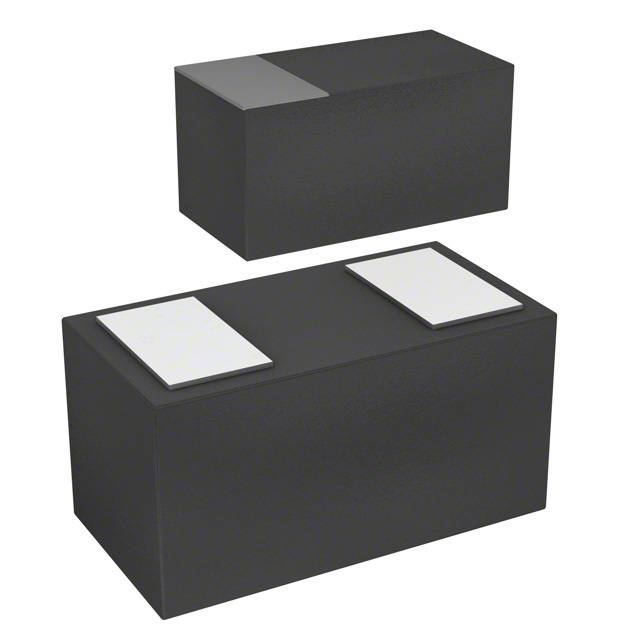

PESD5V0L1BSF,315

Name: PESD5V0L1BSF,315
Brand: Nexperia USA Inc.
SKU: 504017
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD5V0L1BSF,315
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 13.5VC SOD962
Datasheet	PESD5V0L1BSF,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5.5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	13.5V
Peak Pulse Current(Ippm)	3A (8/20μs)
Power Dissipation - Pd	35W
Applications	General Purpose
Capacitance @ Frequency	12pF @ 1MHz
Temperature Range - Operating	-55°C to 150°C (TA)
Mounting	SMD (SMT)
Case / Package	2-DSN (0.60x0.30)
Win Source Part Number	1087579-PESD5V0L1BSF,315
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian PESD5V0L1BSF,315 CAD Model

Alternative Products

Description

The PESD5V0L1BSF,315 is a Zener diode manufactured by Nexperia USA Inc.

Channel: Bidirectional
Stand-off Voltage (Vwm): 5.5V (Max)
Breakdown Voltage (Min): 6V
Capacitance: 12pF @ 1MHz
Clamping Voltage (Max): 13.5V
Peak Pulse Current (Ippm): 3A (8/20μs)
Power Dissipation - Pd: 35W
Mounting Type: SMD (SMT)
Temperature Range: -55°C to 150°C (TA)
Case/Package: 2-DSN (0.60x0.30)
Supply and Demand: Sufficient
