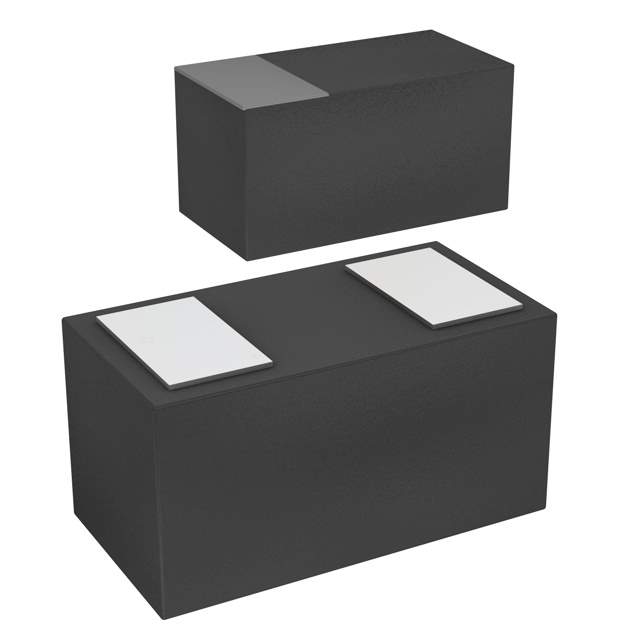

PESD3V3Z1BCSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD3V3Z1BCSFYL

Part No PESD3V3Z1BCSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 4.8VC DSN0603-2 / 4.8V (Typ) Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD3V3Z1BCSFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series TrEOS
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 6.8V (Typ)
Voltage - Clamping (Max) @ Ipp 4.8V (Typ)
Current - Peak Pulse (10/1000µs) 15A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.45pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD3V3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-8343-1,1727-8343-2,934660541315,1727-8343-6
Standard Package 9,000
Win Source Part Number 959066-PESD3V3Z1BCSFYL
Ultra Librarian 3D Model Ultra Librarian PESD3V3Z1BCSFYL CAD Model

Description

The TrEOS Zener diode series PESD3V3Z1BCSFYL is an electronic component designed for general purpose applications.

  • Series: TrEOS
  • Type: bidirectional circuit protection TVS diode
  • Voltage Reverse Standoff: 3.3V (max)
  • Voltage Breakdown: 6.8V (typ)
  • Voltage Clamping: 4.8V (typ) @ max Ipp
  • Power Peak Pulse: Not specified
  • Capacitance @ Frequency: 0.45pF @ 1MHz
  • Maximum Current Peak Pulse (10/1000µs): 15A (8/20µs)
  • Mounting Type: SMD (SMT)
  • Package/Case: 0201 (0603 Metric)
  • Supplier Device Package: DSN0603-2
  • Operating Temperature Range: -40°C ~ 125°C (TA)
  • Manufacturer: Nexperia USA Inc.
