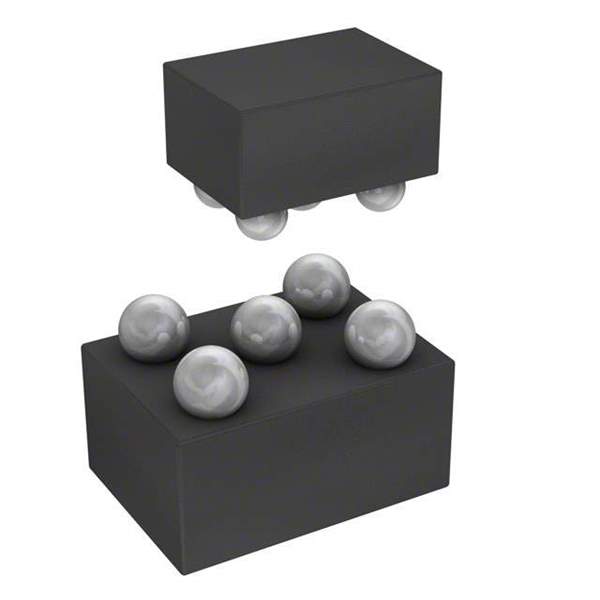

PESD1USB3SZ Real Image
Same model may have multiple batches, images only for reference.

PESD1USB3SZ

Part No PESD1USB3SZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 5WLCSP / Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount 5-WLCSP (0.77x1.17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000µs) 7A (8/20µs)
Power Line Protection No
Applications HDMI
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 5-UFBGA, WLCSP
Supplier Device Package 5-WLCSP (0.77x1.17)
Base Product Number PESD1USB3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-2511-1,1727-2511-2,568-12944-2-ND,568-12944-1-ND,568-12944-2,934069683087,568-12944-1,1727-2511-6,568-12944-6,568-12944-6-ND
Standard Package 4,500
Win Source Part Number 1008113-PESD1USB3SZ
Ultra Librarian 3D Model Ultra Librarian PESD1USB3SZ CAD Model

Description

The PESD1USB3SZ is a Zener type TVS diode designed for use in HDMI applications.

  • Diode Type: Zener
  • Application: HDMI
  • Reverse Standoff Voltage (max): 5.5V
  • Breakdown Voltage (min): 6V
  • Channel: Unidirectional, 2 Channels
  • Peak Pulse Current: 7A (8/20µs)
  • Package: 5-UFBGA, WLCSP
  • Supply: Tape and reel
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99 compliant
  • REACH: Unaffected
