Same model may have multiple batches, images only for reference.

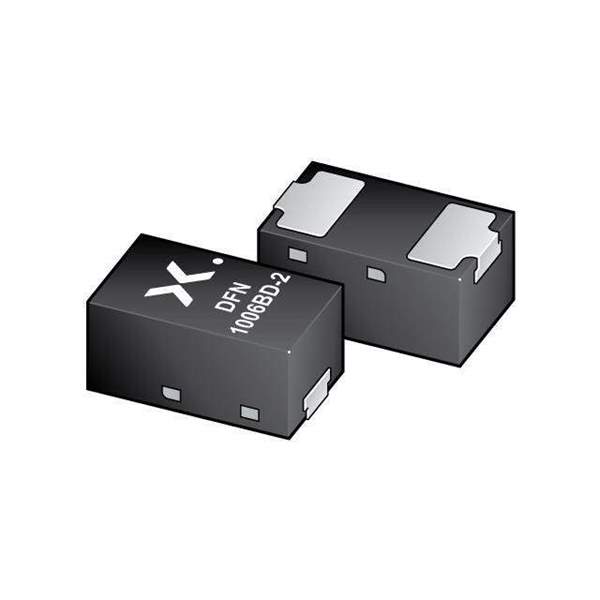

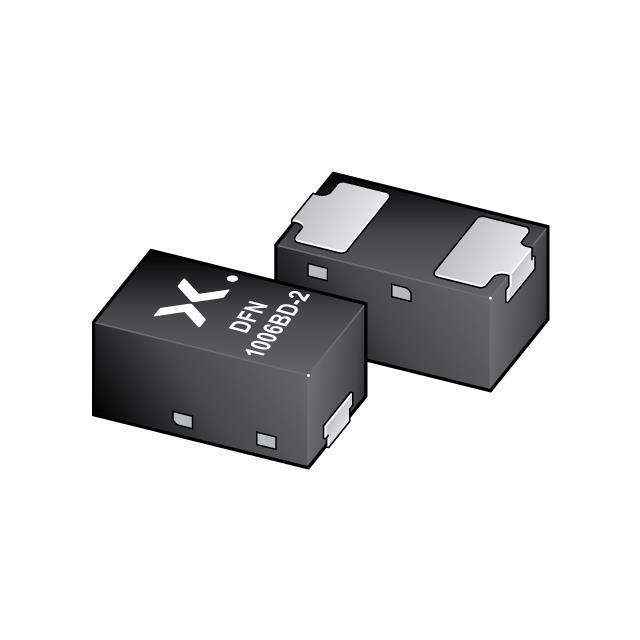

PESD12VV1BLSYL Real Image
Same model may have multiple batches, images only for reference.

PESD12VV1BLSYL

Part No PESD12VV1BLSYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 57VC DFN1006BD-2 / 57V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006BD-2
Datasheet
PESD12VV1BLSYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 14.6V
Voltage - Clamping (Max) @ Ipp 57V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power Line Protection No
Applications Telecom
Capacitance @ Frequency 17pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-PESD12VV1BLSYLDKR,1727-PESD12VV1BLSYLTR,934661709315,1727-PESD12VV1BLSYLCT
Standard Package 10,000
Win Source Part Number 1000524-PESD12VV1BLSYL
Ultra Librarian 3D Model Ultra Librarian PESD12VV1BLSYL CAD Model

Description

The PESD12VV1BLSYL is a Zener type TVS diode from Nexperia USA Inc.

  • Device Type: Zener TVS Diode
  • Mounting Type: SMD (SMT)
  • Channel Type: Bidirectional
  • Reverse Standoff Voltage: 12V
  • Breakdown Voltage: 14.6V
  • Clamping Voltage: 57V @ 12A (8/20µs)
  • Capacitance: 17pF @ 1MHz
  • Application: Telecom
  • Package: SOD-882
  • Temperature Range: -55°C to 150°C (TA)
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8541.10.0080
