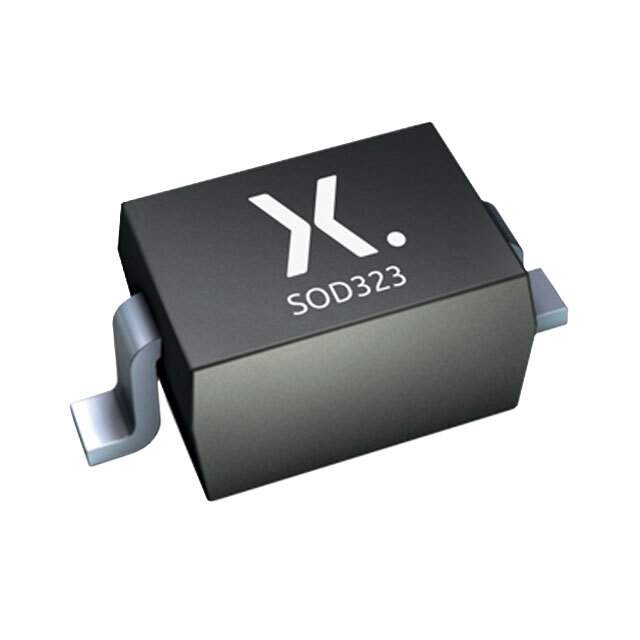

PDZ22BZ Real Image1 PDZ22BZ Real Image2
Same model may have multiple batches, images only for reference.
PDZ22BZ Real Image1 PDZ22BZ Real Image2
PDZ22BZ Real Image1 PDZ22BZ Real Image2
Same model may have multiple batches, images only for reference.

PDZ22BZ

Part No PDZ22BZ
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 22.47V 400MW SOD323 / Zener Diode 22.47 V 400 mW ±2% Surface Mount SOD-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Zener>Single Zener Diodes
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 22.47 V
Tolerance ±2%
Power - Max 400 mW
Impedance (Max) (Zzt) 100 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 17 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Base Product Number PDZ22
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Standard Package 3,000 pcs
Win Source Part Number 1383139-PDZ22BZ
Ultra Librarian 3D Model Ultra Librarian PDZ22BZ CAD Model

Description

The PDZ22BZ is a surface mount zener diode designed for use in various electronic applications.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Voltage Rating: 22.47 V
  • Tolerance: ±2%
  • Power Rating: 400 mW
  • Maximum Current Rating: 17 V
  • Maximum Impedance: 100 Ohms
  • Operating Temperature: 150°C
