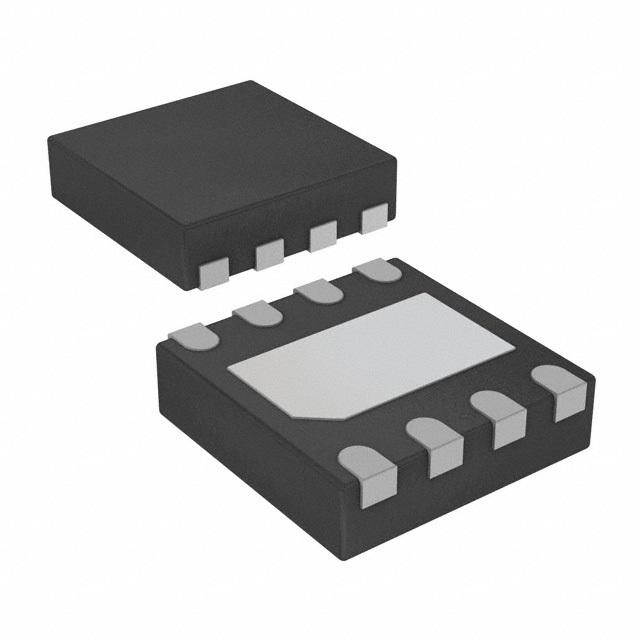

Same model may have multiple batches, images only for reference.
IP4252CZ8-4-TTL,13 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4252CZ8-4-TTL,13

Part No IP4252CZ8-4-TTL,13
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 40 OHM/12PF SMD
Datasheet
IP4252CZ8-4-TTL,13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Attenuation Value 12dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 40
Values R = 40 Ohms, C = 12pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045658-IP4252CZ8-4-TTL,13
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4252CZ8-4-TTL,13 CAD Model

Description

The IP4252CZ8-4-TTL,13 is a SMD (SMT) mounted Low Pass Filter from Nexperia USA Inc.

  • Filter Type: 2nd order
  • Attenuation: 12dB @ 800MHz to 3GHz
  • Resistance: 40 Ohms
  • Capacitance: 12pF (total)
  • Suitable for: LAN and WAN applications
  • Package: 0.067" L x 0.053" W (1.70mm x 1.35mm)
