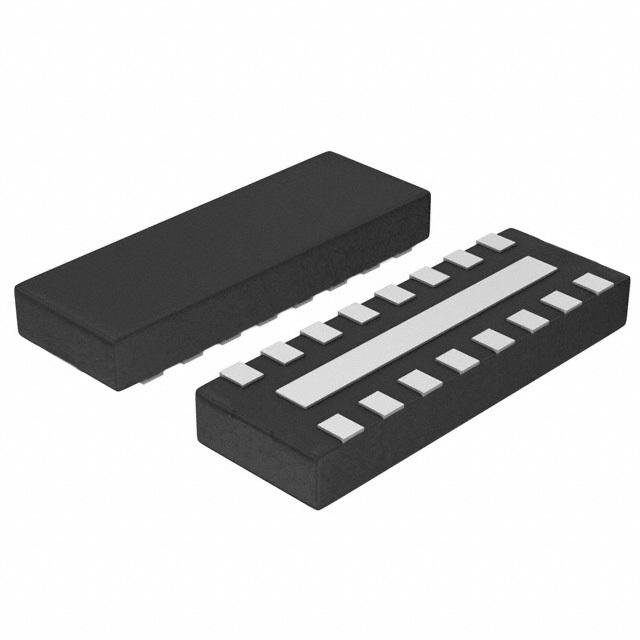

Same model may have multiple batches, images only for reference.
IP4251CZ16-8-TTL,1 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4251CZ16-8-TTL,1

Part No IP4251CZ16-8-TTL,1
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/10PF SMD
Datasheet
IP4251CZ16-8-TTL,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 16dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 10pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045654-IP4251CZ16-8-TTL,1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP4251CZ16-8-TTL,1 CAD Model

Description

The Nexperia IP4251CZ16-8-TTL,1 is an 8-channel low pass RC filter in a 0.130" L x 0.053" W (3.30mm x 1.35mm) package.

  • Attenuation: 16dB @ 800MHz to 3GHz
  • Filter Order: 2nd
  • Resistance: 100 ohms per channel
  • Capacitance: 10pF (total)
  • ESD Protection: Yes
  • Applications: LAN and WAN
  • Mounting: Surface-mountable
  • Package: Reel
  • Height: 0.022" (0.55mm)
  • Component Type: Active
  • Availability: Open market
