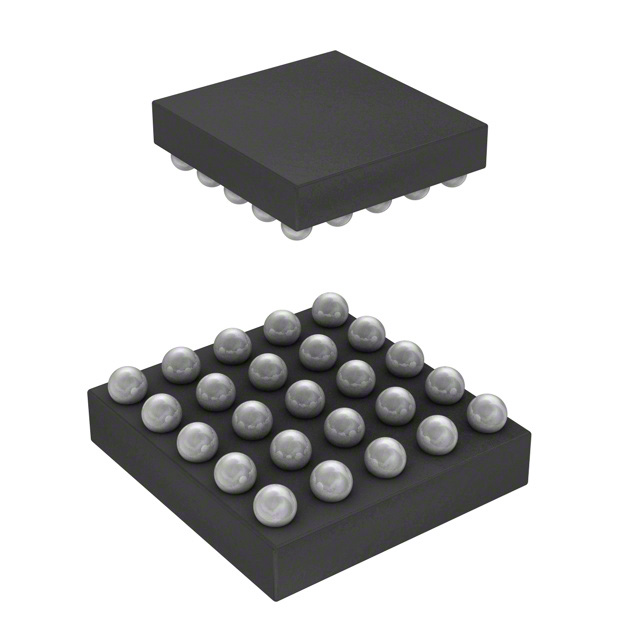

Same model may have multiple batches, images only for reference.
IP4041CX25/LF/P,13 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4041CX25/LF/P,13

Part No IP4041CX25/LF/P,13
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/50PF SMD
Datasheet
IP4041CX25/LF/P,13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 10
Attenuation Value 30dB @ 800MHz to 2.4GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms (Total), C = 50pF (Total)
ESD Protection Yes
Temperature Range - Operating -35°C to 85°C
Applications GSM, LAN, PCS, WAN
Mounting SMD (SMT)
Dimension 0.095" L x 0.095" W (2.41mm x 2.41mm)
Height 0.028" (0.70mm)
Win Source Part Number 1045631-IP4041CX25/LF/P,13
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian IP4041CX25/LF/P,13 CAD Model

Description

The Nexperia USA Inc. IP4041CX25/LF/P,13 is a low pass filter that has a resistance of 200 ohms and a cutoff frequency of - for GSM, LAN, PCS, WAN applications.

  • Filter Order: 2nd
  • Attenuation: 30dB @ 800MHz to 2.4GHz
  • Mounting: SMD (SMT)
  • ESD Protection: yes
