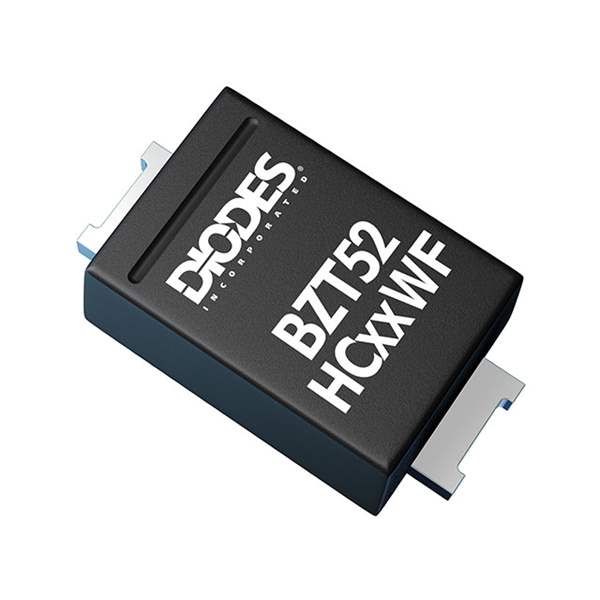

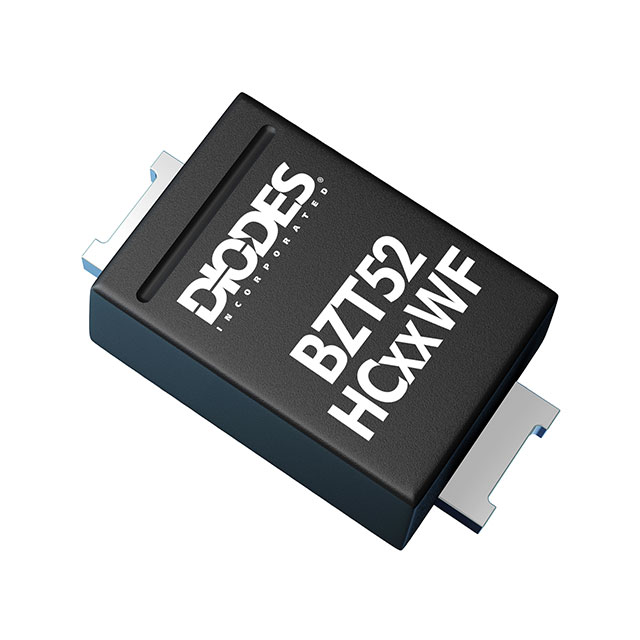

BZT52H-C3V0,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BZT52H-C3V0,115

Part No BZT52H-C3V0,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 3V 375MW SOD123F
Datasheet
BZT52H-C3V0,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 3V
Tolerance ±5%
Maximum Power Dissipation 375mW
Impedance (Max) (Zzt) 95 Ohm
Current - Reverse Leakage @ Vr 10μA @ 1V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOD-123F
Win Source Part Number 1026060-BZT52H-C3V0,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BZT52H-C3V0,115 CAD Model

Description

The Nexperia USA Inc. BZT52H-C3V0,115 is a zener diode designed for use in discrete semiconductor products.

  • Nominal Zener Voltage: 3V
  • Maximum Power Dissipation: 375mW
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage: 10μA @ 1V
  • Tolerance: ±5%
  • Impedance (Max) (Zzt): 95 Ohm
  • Mounting: SMD (SMT)
  • Package: SOD-123F
  • Operating Temperature Range: -65°C to 150°C
