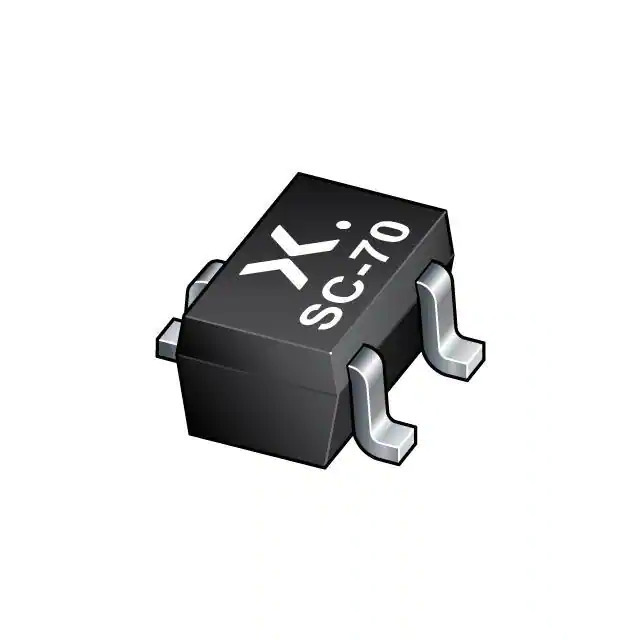

BAV70W,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV70W,135

Part No BAV70W,135
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 175MA SOT323
Datasheet
BAV70W,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 175mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Operating Temperature - Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Base Product Number BAV70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367298-BAV70W,135
Ultra Librarian 3D Model Ultra Librarian BAV70W,135 CAD Model

Description

The BAV70W is a diode array consisting of two diodes with a common cathode connection.

  • Application: General-Purpose Rectification and Switching
  • Maximum Reverse Voltage: 100 V
  • Average Rectified Current: 175 mA per diode
  • Mounting: Surface Mountable
  • Package: SOT-323
  • Reverse Recovery Time: 4 ns
  • Reverse Leakage Current: 500 nA @ 80 V
  • Operating Temperatures: Up to 150°C
  • RoHS Compliant: Yes
  • REACH Compliance: Unaffected
