The 74LVC257APW,118 is a quad 2-input multiplexer from Nexperia. This device selects one of two 4-bit data sources based on the state of the select input (S). The selected data appears on the output (Y). It is part of the Low-Voltage CMOS (LVC) family, known for its low power consumption and high speed.

Applications

• Data selection
• Address multiplexing
• Logic function generation
• Signal routing
• Microprocessor systems

Features

• Quad 2-input multiplexer
• Low propagation delay
• Low power consumption
• Wide supply voltage range (1.65 V to 3.6 V)
• Overvoltage tolerant inputs
• Complies with JEDEC standard no. 8-1A

Benefits

• Enables efficient data selection and routing
• Reduces power consumption in battery-powered applications
• Simplifies system design with its quad structure
• Protects the device from overvoltage conditions
• Ensures compatibility with other logic devices

Additional Details

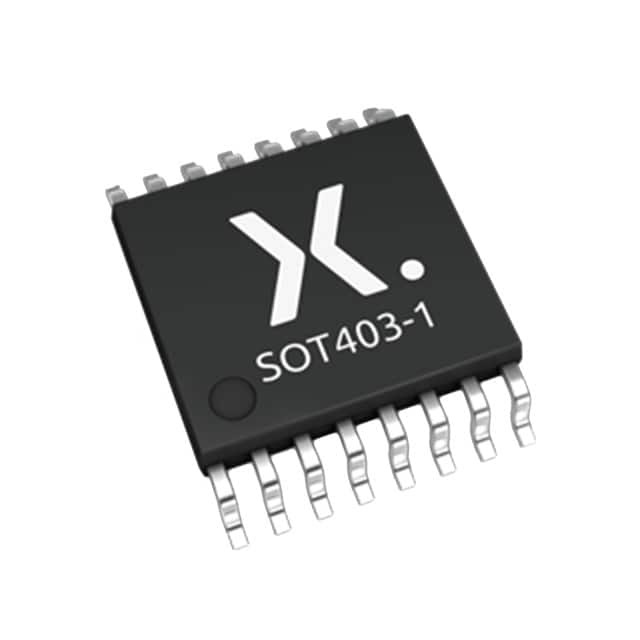

The 74LVC257APW,118 operates within a supply voltage range of 1.65 V to 3.6 V. It is available in a TSSOP16 package. The device features a common enable input (OE), which, when HIGH, forces all outputs LOW. The inputs are overvoltage tolerant, allowing them to accept voltages higher than the supply voltage without damage. This feature enhances the robustness of the device in noisy environments.
