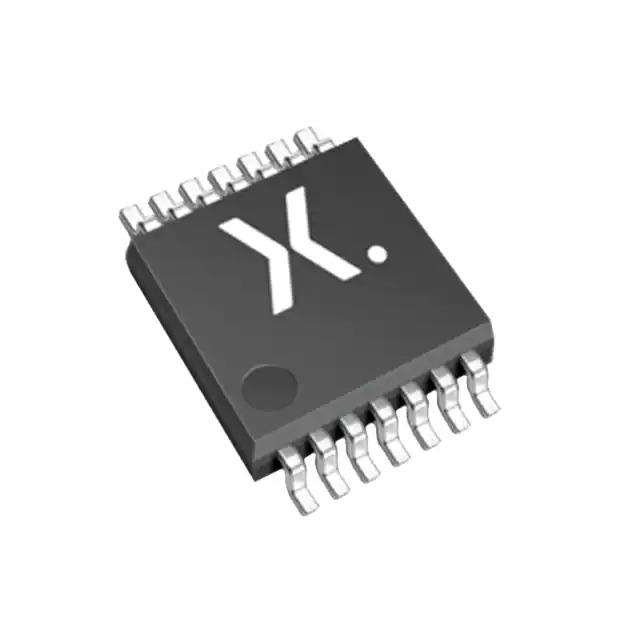

74LV14APWJ

Name: 74LV14APWJ
Brand: Nexperia USA Inc.
SKU: 1371078
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	74LV14APWJ
Manufacturer	Nexperia USA Inc.
Catalog	Logic - Gates and Inverters
Description	IC INVERTER 6CH 1-INP 14TSSOP / Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
Datasheet	74LV14APWJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr	Nexperia USA Inc.
Series	74LV
Package	Tape & Reel
Product Status	Active
Logic Type	Inverter
Number of Circuits	6
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	2V ~ 5.5V
Current - Quiescent (Max)	20 µA
Current - Output High, Low	12mA, 12mA
Input Logic Level - Low	0.75V ~ 1.5V
Input Logic Level - High	1.75V ~ 3.5V
Max Propagation Delay @ V, Max CL	10.6ns @ 5V, 50pF
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Package / Case	14-TSSOP (0.173", 4.40mm Width)
Base Product Number	74LV14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1371078-74LV14APWJ
Ultra Librarian 3D Model	Ultra Librarian 74LV14APWJ CAD Model

Alternative Products

Description

The 74LV14APWJ is a Schmitt Trigger Inverter that belongs to the 74LV series of integrated circuits.

Operating Temperature: -40°C to 125°C
Voltage Supply: 2V to 5.5V
Quiescent Current: 20μA
Package: 14-TSSOP
Mounting Type: Surface Mount
Maximum Propagation Delay: 10.6ns @ 5V
Circuits: 6
Input: 1
Output Current: 12mA each (high and low)
Input Logic Levels (Low): 0.75V to 1.5V
Input Logic Levels (High): 1.75V to 3.5V
