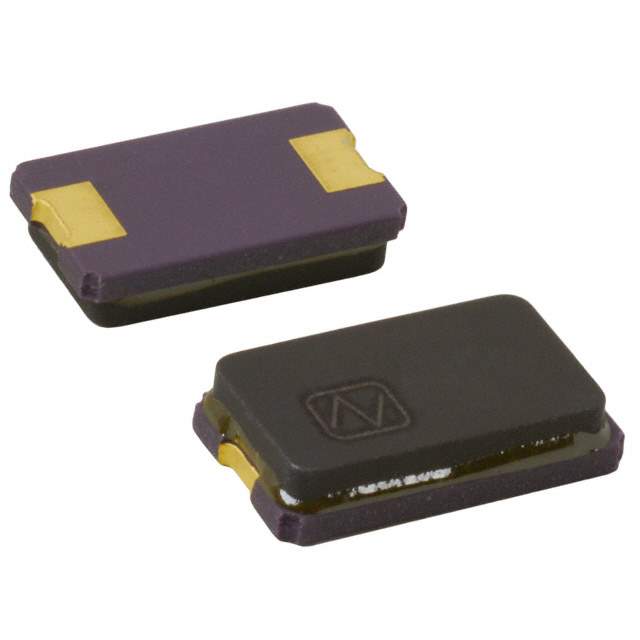

NX8045GB-12.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-12.000000MHZ

Part No NX8045GB-12.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 12.0000MHZ 8PF SMD
Datasheet
NX8045GB-12.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR 80 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 129550-NX8045GB-12.000000MHZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NX8045GB-12.000000MHZ CAD Model

Description

The NDK America, Inc. NX8045GB-12.000000MHZ is a MHz crystal that is ideal for high-performance applications.

  • Frequency: 12MHz
  • Frequency stability: ±50ppm
  • Crystal type: SMD
  • Height: 0.079" (2.00mm)
  • Dimension: 0.315" L x 0.177" W (8.00mm x 4.50mm)
  • ESR: 80 Ohm
  • Frequency tolerance: ±50ppm
  • Load capacitance: 8pF
  • Ideal for: use in a wide range of applications, including oscillators and resonators
