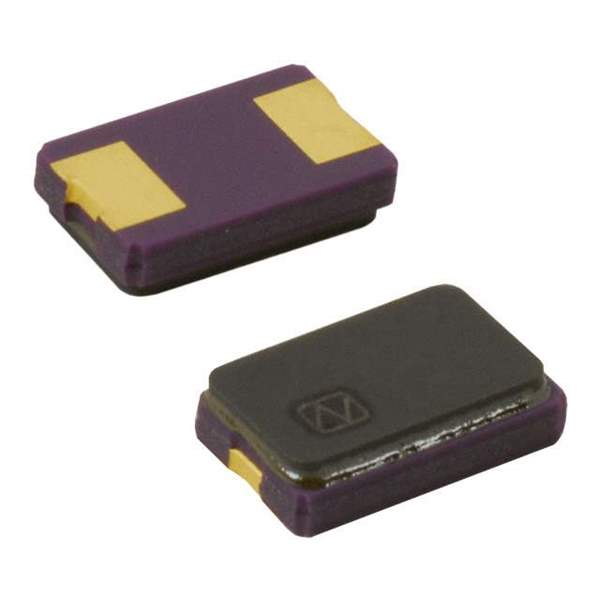

NX5032GA-16.000M-STD-CSU-2 Real Image

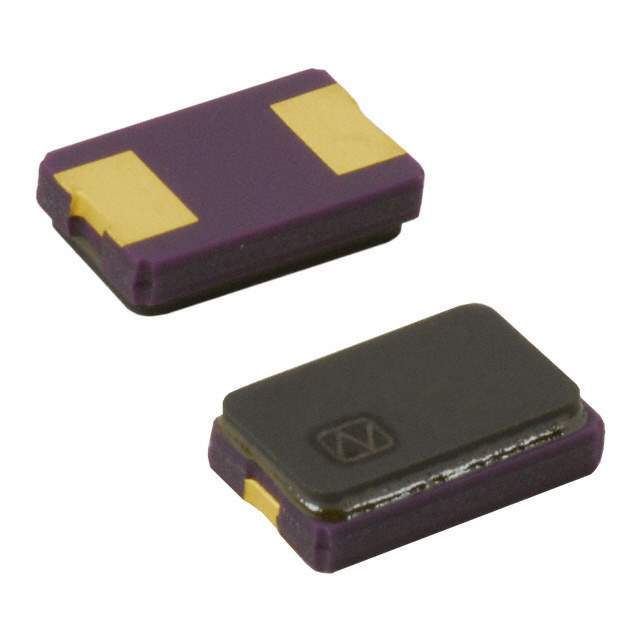

Same model may have multiple batches, images only for reference.

NX5032GA-16.000M-STD-CSU-2

Part No NX5032GA-16.000M-STD-CSU-2
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 16.0000MHZ 8PF SMD / 16 MHz ±50ppm Crystal 8pF 120 Ohms 2-SMD, No Lead
Datasheet
NX5032GA-16.000M-STD-CSU-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX5032GA
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±150ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 50157475,NX5032GA 16MHZ AT-W-STD-CSU-2,644-1135-6,NX5032GA 16MHZ AT-W,644-1135-1,644-1135-2,NX5032GA16MHZATW
Standard Package 1,000
Win Source Part Number 1083018-NX5032GA-16.000M-STD-CSU-2
Ultra Librarian 3D Model Ultra Librarian NX5032GA-16.000M-STD-CSU-2 CAD Model

Description

The NX5032GA-16.000M-STD-CSU-2 is a MHz crystal component manufactured by NDK.

  • Category: Crystals, Oscillators, Resonators
  • Series: NX5032GA
  • Package: Tape and reel
  • Height (seated): 0.059 inches
  • Frequency: 16 MHz
  • ESR: 120 Ohms
  • Frequency Stability: ±150ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Package: 2-SMD, No Lead
  • Operating Temperature Range: -40°C to 150°C
  • AEC-Q200 Rated: Yes
  • Popularity Rating: Low
  • Supply and Demand Status: Shortage
