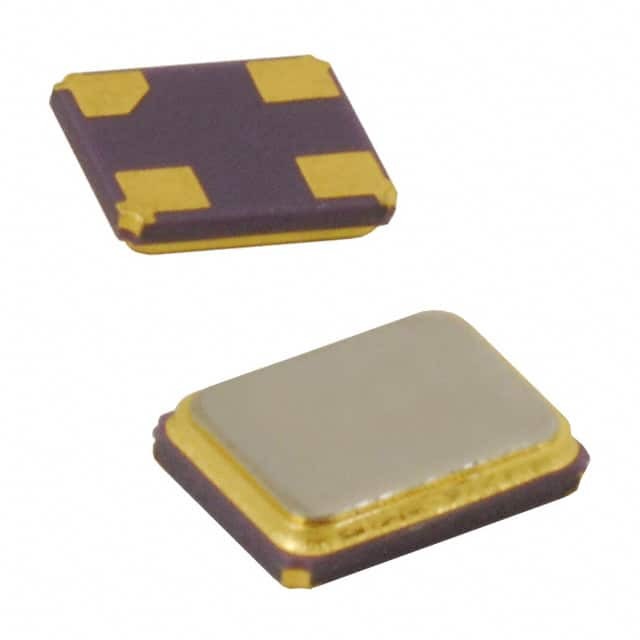

NX2520SA-32.000000MHZ
Same model may have multiple batches, images only for reference.

NX2520SA-32.000000MHZ

Part No NX2520SA-32.000000MHZ
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 10PF SMD
Datasheet
NX2520SA-32.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 37 Weeks
Features ±10ppm Crystal 10pF 4-SMD, No Lead
Manufacturer NDK
Series NX2520SA
Package Reel - TR
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number NX2520SA-32.000000MHZ-STD-CSW-2, NX2520SA-32.000M-STD-CSW-2, 644-1065-6, 644-1065-1, NX2520SA32000000MHZ, 50157408, 644-1065-2
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887941-NX2520SA-32.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX2520SA-32.000000MHZ CAD Model

Description

The NX2520SA-32.000000MHZ crystal from NDK is a high-quality electronic component that offers reliable performance.

  • Supply and Demand Status: limited
  • Operating Temperature Range: -10°C to 70°C
  • Package: 4-SMD package
  • Packaging: reel
  • Quantity: 3000
  • Estimated Production Lead Time: 37 weeks
