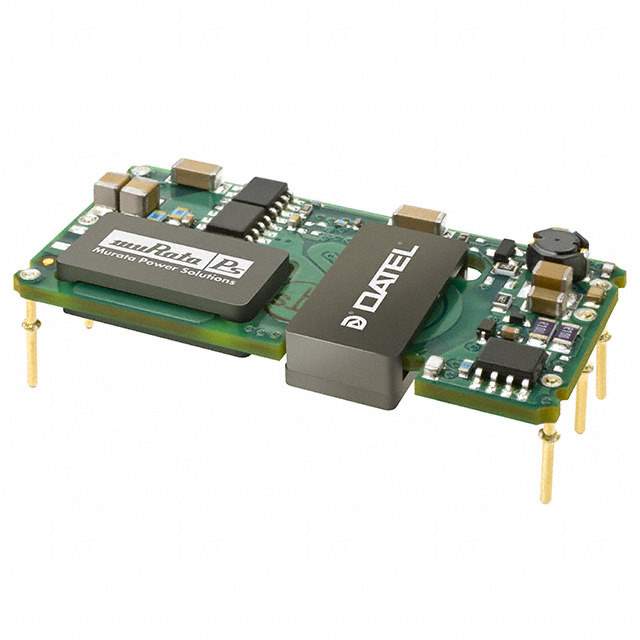

Same model may have multiple batches, images only for reference.

UEI30-033-Q12P-C

Name: UEI30-033-Q12P-C
Brand: Murata Power Solutions Inc.
SKU: 971799
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UEI30-033-Q12P-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 30W / Isolated Module DC DC Converter 1 Output 3.3V 9A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	UEI30 (30W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	9A
Power (Watts)	30 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.92" L x 0.92" W x 0.35" H (48.8mm x 23.4mm x 8.9mm)
Control Features	Enable, Active High
Base Product Number	UEI30-033
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-3330,UEI30-033-Q12P-C-ND
Standard Package	84
Win Source Part Number	971799-UEI30-033-Q12P-C
Ultra Librarian 3D Model	Ultra Librarian UEI30-033-Q12P-C CAD Model

Alternative Products

Description

The UEI30 (30W) series is a type of isolated module DC-DC converter that features remote on/off, OCP, OTP, OVP, SCP, and UVLO capabilities from Murata Power Solutions Inc.

Application: ITE (Commercial)
Standard Package: 84
Power Output: 30 W
Control Features: Enable, Active High
Voltage Isolation: 2.25 kV
Outputs: One
Maximum Current Output: 9A
Input Voltage Range: 9V to 36V
Output Voltage: 3.3V
Efficiency: 89%
Mounting: Through Hole
Package/Case: 6-DIP Module
Operating Temperature Range: -40°C to 85°C
