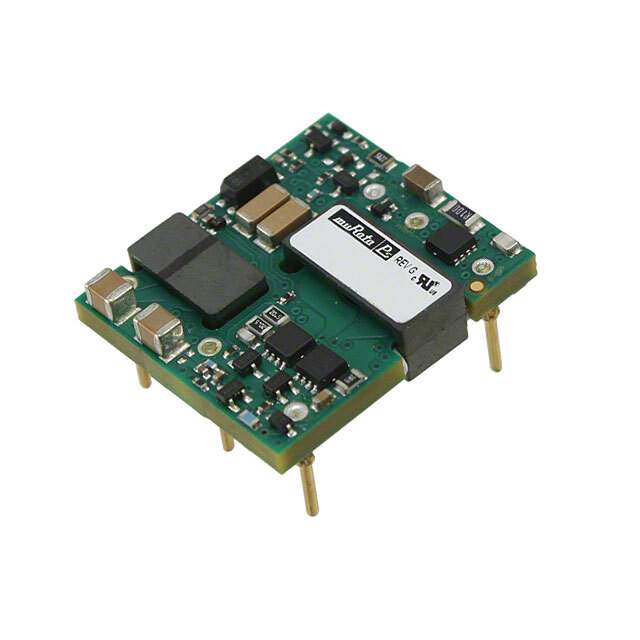

UEI15-150-Q48N-C Real Image
Same model may have multiple batches, images only for reference.

UEI15-150-Q48N-C

Part No UEI15-150-Q48N-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 48VIN 1-OUT 15V 1.1A 16.5W Automotive 6-Pin Case C-75 / Isolated Wide Input Range 15-Watt DC/DC Converters | DC DC CONVERTER 15V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tray
Type Isolated Module
Voltage - Input (Minimum) 18V
Voltage - Input (Maximum) 75V
Voltage - Output 1 15V
Current - Output (Maximum) 1.1A
Power (W) 15W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85.3%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 750401-UEI15-150-Q48N-C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name UEI15-150-Q48
Introduction Date February 06, 2009
Country of Origin China, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UEI15-150-Q48N-C CAD Model

Description

The UEI15-150-Q48N-C is an isolated module from Murata Power Solutions Inc.

  • Features: OCP, OTP, OVP, SCP, UVLO
  • Application: ITE (Commercial)
  • Voltage Isolation: 2.25kV
  • Voltage Output: 15V
  • Efficiency: 85.3%
  • Series: UEI15-150-Q48
  • Package: Tray
  • Mounting Style: Through Hole
  • Operating Temperature: -40°C ~ 85°C
  • Manufacturer Package: 6-DIP module
  • Current Output: 1.1A
  • Alternative Parts: PRD15-Q48-S15-N-D, PRD15-Q48-S12-N-D, CC15-4815SFH-E, DPX15-48WS15-N
  • Introduction Date: February 06, 2009
  • Country of Origin: China, United States of America
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
  • Quantities per Package: 30
  • MSL Level: 1 (unlimited)
  • Power: 15W
  • Voltage Input (Minimum): 18V
  • Voltage Input (Maximum): 75V
  • Dimensions: 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm)
  • Popularity: High
