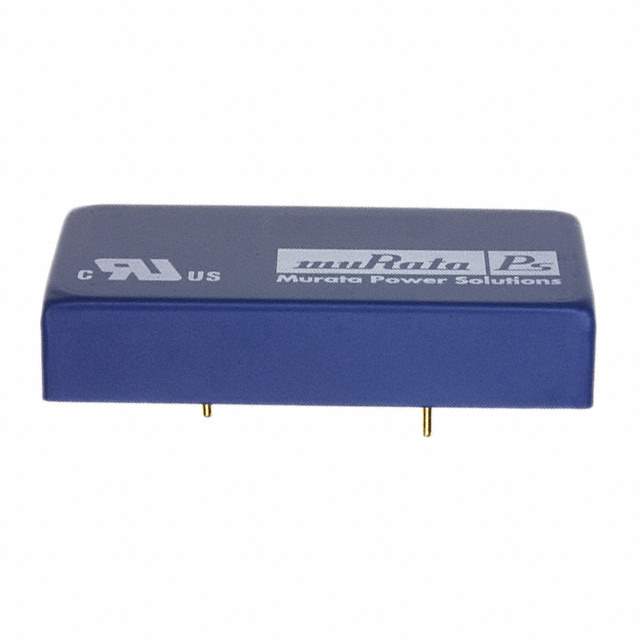

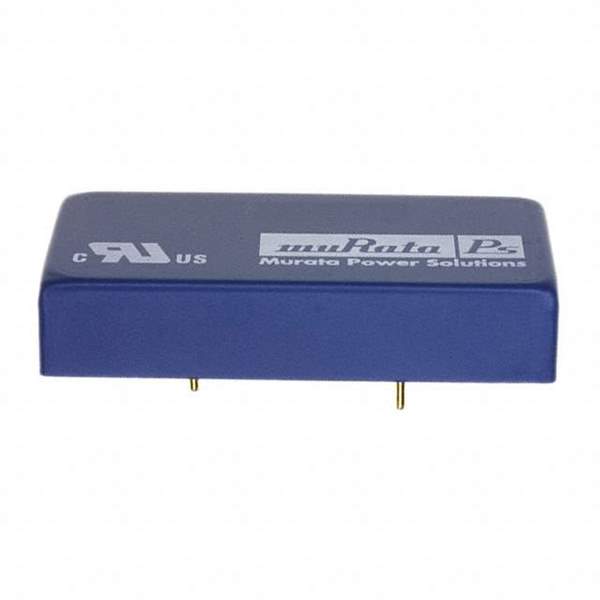

NPH15S2403EIC Real Image1 NPH15S2403EIC Real Image2
Same model may have multiple batches, images only for reference.
NPH15S2403EIC Real Image1 NPH15S2403EIC Real Image2
NPH15S2403EIC Real Image1 NPH15S2403EIC Real Image2
Same model may have multiple batches, images only for reference.

NPH15S2403EIC

Part No NPH15S2403EIC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.4V 15W / Isolated Module DC DC Converter 1 Output 3.4V 4.4A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NPH15S (15W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 3.4V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 4.4A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 110°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)
Base Product Number NPH15S24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 20 pcs
Win Source Part Number 1383042-NPH15S2403EIC
Ultra Librarian 3D Model Ultra Librarian NPH15S2403EIC CAD Model

Description

The NPH15S2403EIC is a 15W isolated DC-DC converter module from the NPH15S series.

  • Voltage Isolation: 1.5kV
  • Power Rating: 15W
  • Output: Single Output
  • Voltage Rating: 3.4V
  • Current Rating: 4.4A
  • Input Voltage Range: 18V to 36V
  • Mounting Type: Through-Hole
  • Package: 6-DIP Module
