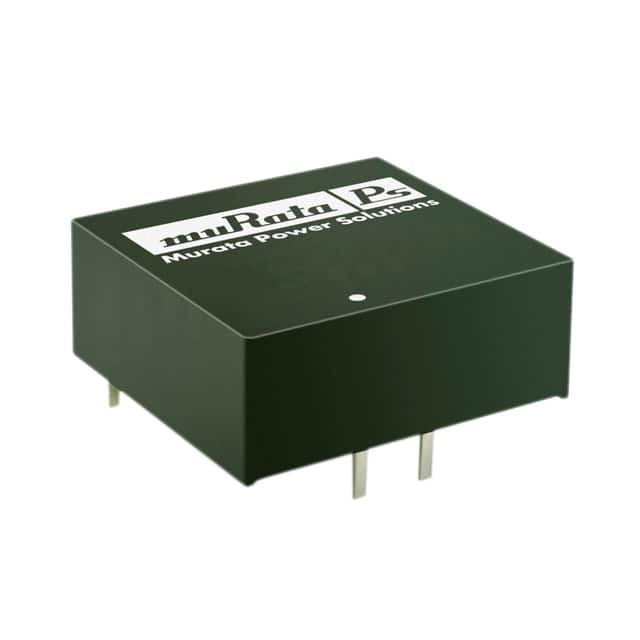

Same model may have multiple batches, images only for reference.

NMXS1212UC

Name: NMXS1212UC
Brand: Murata Power Solutions Inc.
SKU: 846972
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMXS1212UC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 5W
Datasheet	NMXS1212UC Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMXU (5W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	417mA
Power (Watts)	5 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	0°C ~ 70°C
Efficiency	75%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Size / Dimension	0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm)
Base Product Number	NMXS12
Standard Package	20 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846972-NMXS1212UC
Ultra Librarian 3D Model	Ultra Librarian NMXS1212UC CAD Model

Alternative Products

Description

The NMXS1212UC is a 5W isolated module power supply from Murata Power Solutions Inc.

Series: NMXU
Application: Power Supplies, Board Mount DC-DC Converters
Voltage Isolation: 1 kV
Output: Single (12V)
Maximum Output Current: 417mA
Input Voltage: 10.8V to 13.2V
Application: ITE (Commercial)
Size: 0.99" L x 0.93" W x 0.39" H
Mounting: Through Hole
Efficiency: 75%
Operating Temperature: 0°C to 70°C
Package: 5-DIP Module
Standard Package: 20 pcs
Product Status: Obsolete
