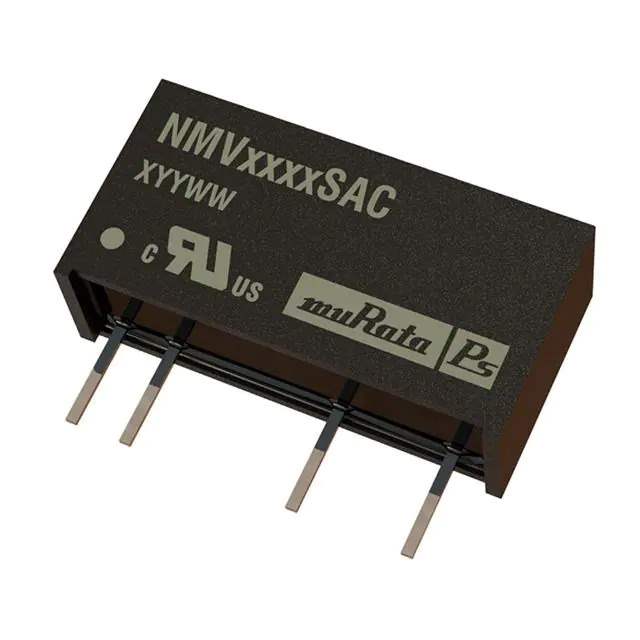

NMV0515SAC Real Image
Same model may have multiple batches, images only for reference.

NMV0515SAC

Part No NMV0515SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649210-NMV0515SAC
Ultra Librarian 3D Model Ultra Librarian NMV0515SAC CAD Model

Description

The NMV0515SAC is an isolated module DC-DC converter from the NMV (1W) series by Murata Power Solutions Inc.

  • Package: tube
  • Size Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Application: ITE (Commercial)
  • Power Rating: 1W
  • Maximum Output Current: 67mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 15V
  • Efficiency: 78%
  • Mounting Type: through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Description: designed for reliable performance in various environments
