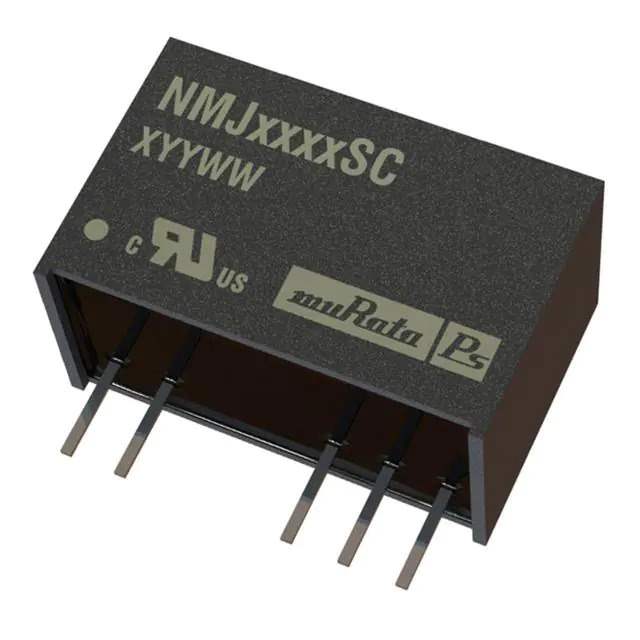

NMJ0515SC Real Image
Same model may have multiple batches, images only for reference.

NMJ0515SC

Part No NMJ0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 65%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649168-NMJ0515SC
Ultra Librarian 3D Model Ultra Librarian NMJ0515SC CAD Model

Description

The NMJ0515SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMJ
  • Designed for: Power supplies in board mount applications
  • Outputs: Two
  • Maximum Output Current (each): 33mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 15V and -15V
  • Voltage Isolation: 5.2 kV
  • Efficiency: 65%
  • Package: 7-SIP module with 5 leads
  • Temperature Range: -40°C to 60°C
  • Commonly used in: ITE (Commercial) applications
  • Packaging: Tube
  • Standard Package: 25 pcs
