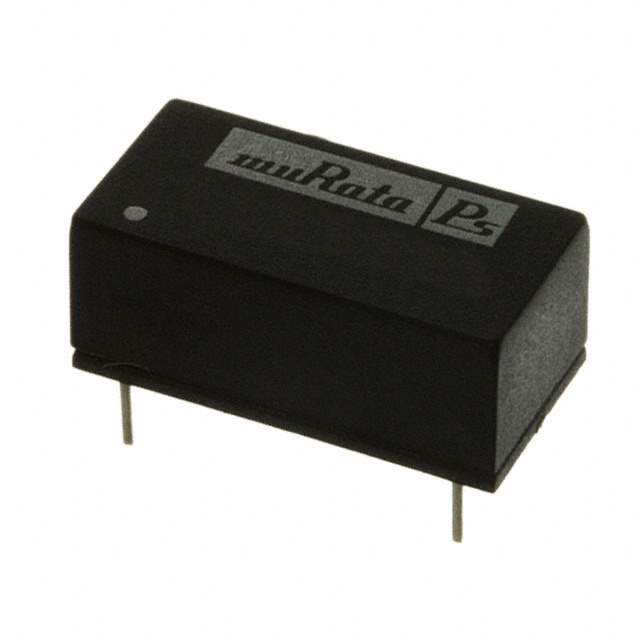

NMH2409DC Real Image
Same model may have multiple batches, images only for reference.

NMH2409DC

Part No NMH2409DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 2W / Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 111mA, 111mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85%
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Dimension 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Base Product Number NMH24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names NMH2409DC-ND,811-3777
Standard Package 25
Win Source Part Number 1082530-NMH2409DC
Ultra Librarian 3D Model Ultra Librarian NMH2409DC CAD Model

Description

The NMH2409DC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMH series
  • Outputs: Two outputs
  • Maximum Output Current: 111mA each
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage (Output 1): 9V
  • Output Voltage (Output 2): -9V
  • Mounting: Through hole
  • Package: 14-DIP module with six leads
  • Operating Temperature Range: -40°C to 85°C
  • Efficiency: 85%
  • Ideal for: Use in ITE (Commercial) applications
  • Standard Package: 25
  • Dimensions: 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
  • Status: Obsolete
  • Alternative Parts: NMH2412DC, NMH2415DC, CC1R5-2412DF-E, CC6-2412DF-E, and CC3-2412DF-E
