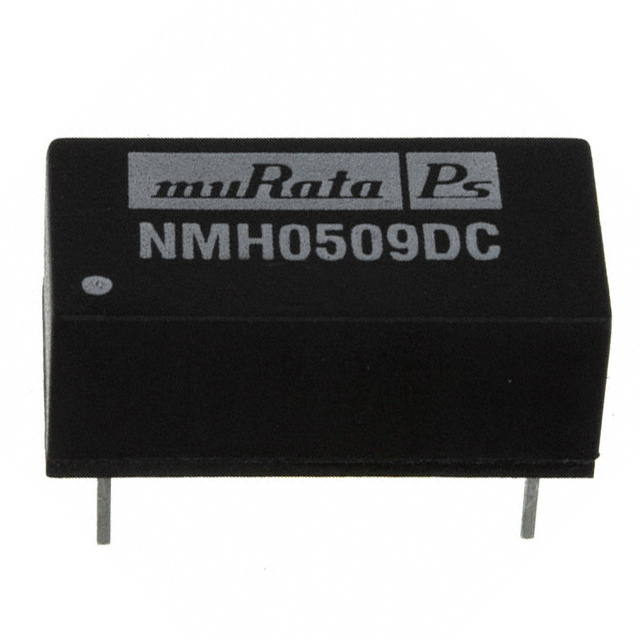

Same model may have multiple batches, images only for reference.
NMH0509DC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMH0509DC

Part No NMH0509DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated 2W Dual Output DC/DC Converters | DC DC CONVERTER +/-9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Maximum) 111mA, 111mA
Power (W) 2W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Style Through Hole
Manufacturer Package 14-DIP Module (300 mil, 6 Leads)
Parts Dimension 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 719794-NMH0509DC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMH0509DC CAD Model

Description

The Murata Power Solutions Inc. NMH0509DC is an isolated module with a through-hole mounting style designed for ITE (Commercial) applications.

  • Voltage-Isolation: 1kV
  • Outputs: 2
  • Efficiency: 81%
  • Voltage Output 1: 9V
  • Voltage Output 2: -9V
  • Current Output Maximum: 111mA, 111mA
  • Power: 2W
  • Operating Temperature: -40°C to 85°C
  • Package: 14-DIP module (300 mil, 6 leads)
  • Manufacturer Pack Quantity: 25
  • Popularity: Medium
  • Supply and Demand Status: Limited
