Same model may have multiple batches, images only for reference.

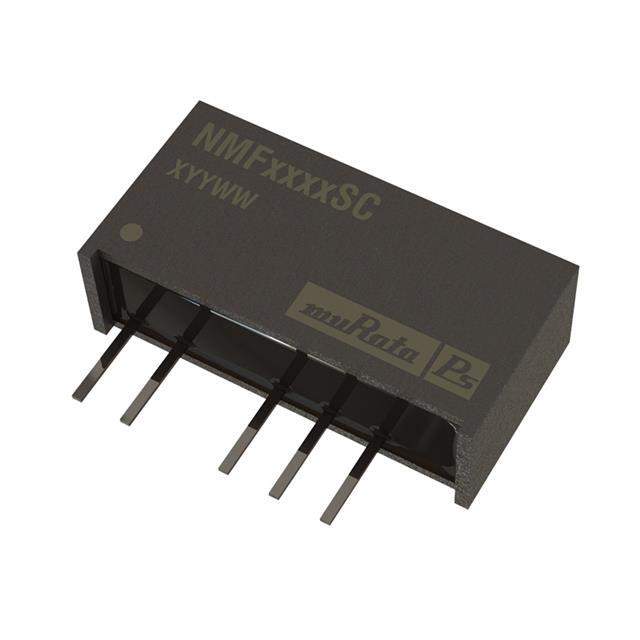

NMF2405SC Real Image
Same model may have multiple batches, images only for reference.

NMF2405SC

Part No NMF2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 24VIN 5V SIP SGL / Module DC-DC 24VIN 1-OUT 5V 0.1A 0.5W 5-Pin SIP
Datasheet
NMF2405SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 22.8V
Voltage Input MAX 25.2V
Voltage - Output 1 5V
Current - Output (Maximum) 100mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 50%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 790749-NMF2405SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF2405SC
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF2405SC CAD Model

Description

The Murata Power Solutions Inc. Isolated Module NMF2405SC is a through hole mounting style power supply.

  • Voltage Isolation: 1kV
  • Output Voltage: 5V
  • Efficiency: 50%
  • Maximum Output Current: 100mA
  • Applications: ITE (Commercial)
  • Package: 7-SIP Module, 5 Leads
  • Operating Temperature Range: 0°C to 70°C
  • Manufacturer Website: www.murata.com
  • Package Quantity: 25
  • MSL Level: 1 (Unlimited)
  • Power: 1W
  • Voltage Input: 22.8V to 25.2V
  • Dimensions: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
