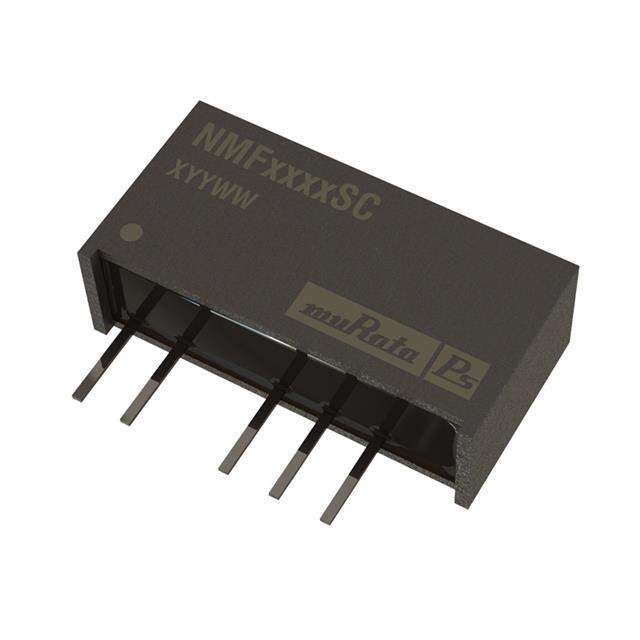

NMF1205SC Real Image
Same model may have multiple batches, images only for reference.

NMF1205SC

Part No NMF1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 12VIN 5V SIP SGL / Module DC-DC 12VIN 1-OUT 5V 0.1A 0.5W 5-Pin SIP
Datasheet
NMF1205SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 11.4V
Voltage Input MAX 12.6V
Voltage - Output 1 5V
Current - Output (Maximum) 100mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 50%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 790746-NMF1205SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF1205SC
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF1205SC CAD Model

Description

The NMF1205SC is a 1W, isolated module DC-DC converter.

  • Package: 7-SIP module, 5 leads
  • Temperature Range: 0°C ~ 70°C
  • Voltage Isolation: 1kV (1000V)
  • Voltage Input Range: 11.4V to 12.6V
  • Current Output: 100mA
  • Voltage Output: 5V
  • Efficiency: 50%
  • Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
