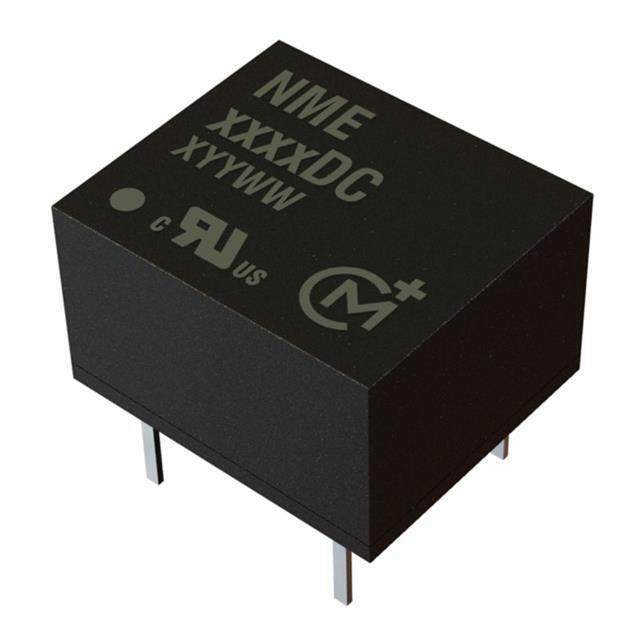

NME0524DC Real Image
Same model may have multiple batches, images only for reference.

NME0524DC

Part No NME0524DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1W / Isolated 1W Single Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Maximum Input Voltage 5.5V
Voltage - Output 1 24V
Current - Output (Maximum) 42mA
Power (Watts) 1W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Style Through Hole
Manufacturer Package 8-DIP Module, 4 Leads
Dimension 0.39" L x 0.45" W x 0.27" H (9.9mm x 11.4mm x 6.9mm)
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814169-NME0524DC
Ultra Librarian 3D Model Ultra Librarian NME0524DC CAD Model

Description

The NME0524DC is an isolated module from Murata Power Solutions Inc.

  • Power: 1W
  • Voltage Isolation: 1kV
  • Voltage Input Minimum: 4.5V
  • Voltage Output: 24V
  • Efficiency: 80%
  • Maximum Output Current: 42mA
  • Mounting: Through Hole
  • Dimensions: 0.39" L x 0.45" W x 0.27" H (9.9mm x 11.4mm x 6.9mm)
  • Maximum Input Voltage: 5.5V
  • Package: 8-DIP Module, 4 Leads
  • Operating Temperature: -40°C to 85°C
  • Popularity: Limited
