Same model may have multiple batches, images only for reference.

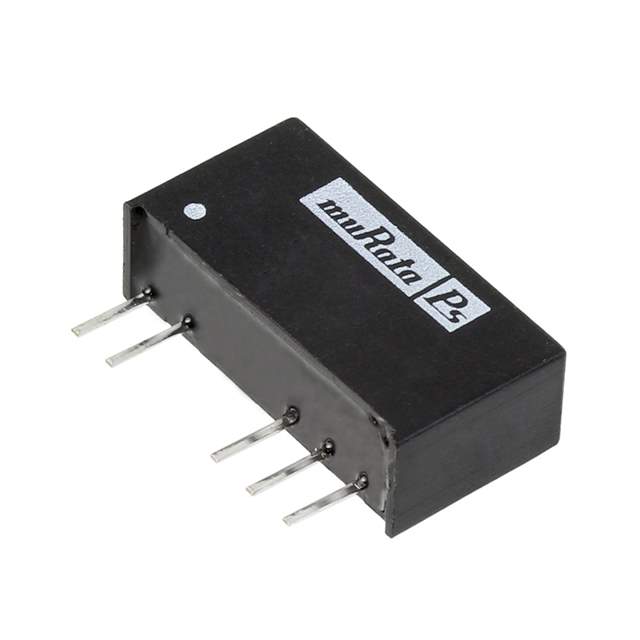

NMA2405SC Real Image
Same model may have multiple batches, images only for reference.

NMA2405SC

Part No NMA2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 24VIN 5VOUT SIP DL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (5 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 70%
Power (Watts) - Max 1W
Catalog NMA Series
Win Source Part Number 060525-NMA2405SC
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian NMA2405SC CAD Model

Description

The NMA2405SC is a DC DC converter module that is designed for use in power supplies - board mount applications from Murata Power Solutions Inc.

  • Package: 7-SIP module
  • Leads: 5 leads
  • Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Type: Isolated module
  • Outputs: Two outputs
  • Input Voltage Range: 21.6V to 26.4V
  • Voltage Output 1: 5V
  • Voltage Output 2: -5V
  • Maximum Output Current: 100mA for both outputs
  • Efficiency: 70%
  • Application: ITE (Commercial)
