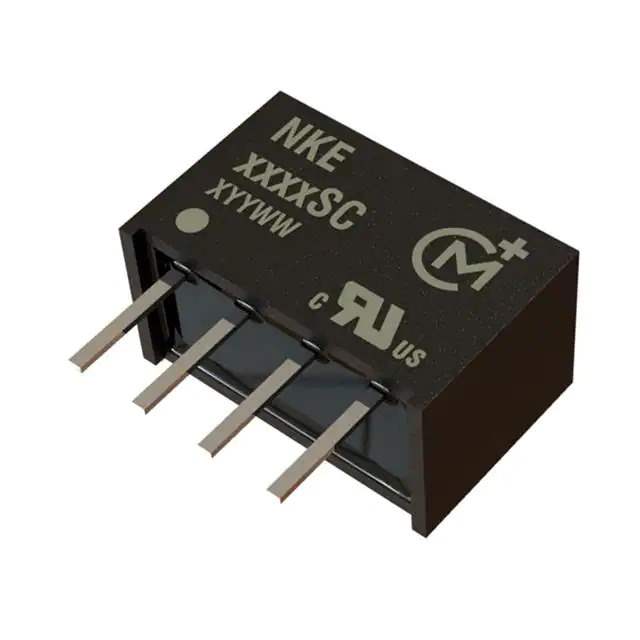

NKE0509SC Real Image
Same model may have multiple batches, images only for reference.

NKE0509SC

Part No NKE0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 111mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKE (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 111mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
Base Product Number NKE05
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648819-NKE0509SC
Ultra Librarian 3D Model Ultra Librarian NKE0509SC CAD Model

Description

The NKE0509SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Manufacturer: Murata Power Solutions Inc.
  • Power: 1W
  • Type: isolated module DC-DC converter
  • Series: NKE
  • Applications: power supplies in board mount applications
  • Voltage Isolation: 3 kV
  • Outputs: single
  • Output Voltage: 9V
  • Maximum Output Current: 111mA
  • Input Voltage Range: 4.5V to 5.5V
  • Size: 0.45" L x 0.24" W x 0.29" H
  • Applications: ITE (Commercial)
  • Efficiency: 75%
  • Operating Temperature: -40°C to 85°C
  • Mounting: through hole
  • Package: 4-SIP module
  • Status: active product
  • Standard Package: 40 pcs
