Same model may have multiple batches, images only for reference.

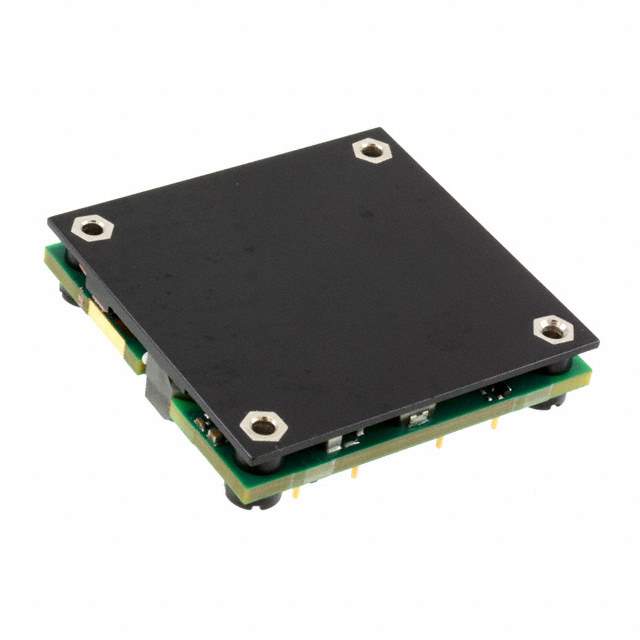

PAH-28/16-D48NB-C Real Image
Same model may have multiple batches, images only for reference.

PAH-28/16-D48NB-C

Part No PAH-28/16-D48NB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 450W / Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series PAH (450W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 28V
Current - Output (Max) 16A
Power (Watts) 450 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.5%
Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Size / Dimension 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number PAH-28
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350617-PAH-28/16-D48NB-C
Ultra Librarian 3D Model Ultra Librarian PAH-28/16-D48NB-C CAD Model

Description

The 1350617-PAH-28/16-D48NB-C is a 450W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Power (Watts): 450W
  • Applications: ITE (Commercial)
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Package: Tray
  • Size / Dimension: 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
  • Number of Outputs: 1
  • Voltage - Input (Min): 36V
  • Voltage - Input (Max): 75V
  • Voltage - Output: 28V
  • Current - Output (Max): 16A
  • Voltage - Isolation: 2.25 kV
  • Mounting Type: Through Hole
  • Efficiency: 93.5%
