Same model may have multiple batches, images only for reference.

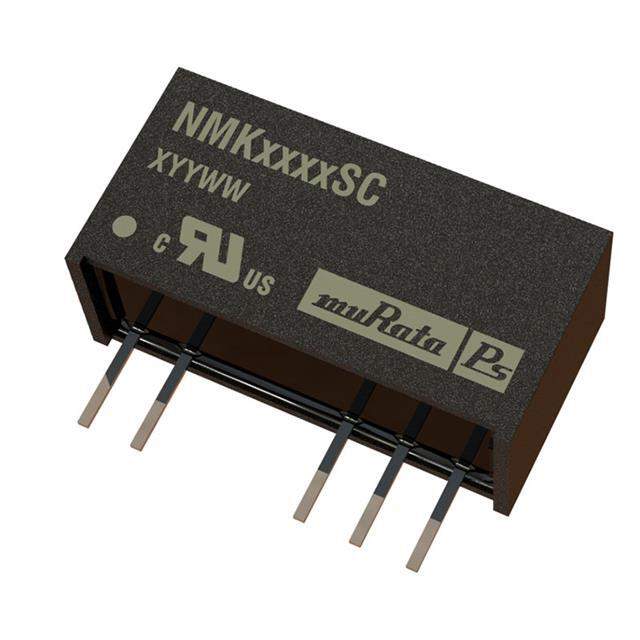

NMK0515SC Real Image
Same model may have multiple batches, images only for reference.

NMK0515SC

Part No NMK0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK05
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-3392-5,NMK0515SC-ND
Standard Package 25
Win Source Part Number 1335264-NMK0515SC
Ultra Librarian 3D Model Ultra Librarian NMK0515SC CAD Model

Description

The Murata Power Solutions Inc. 1335264-NMK0515SC is a power supply-board mount>DC DC converter that is designed to meet the ITE (commercial) application.

  • Power: 2 W
  • Standard Package: 25
  • Voltage Isolation: 3 kV
  • Maximum Output Current: 67mA and -67mA
  • Efficiency: 87%
  • Operating Temperature: -40°C to 85°C
  • Package: 7-SIP module, 5 leads
  • Reliable: Highly reliable
