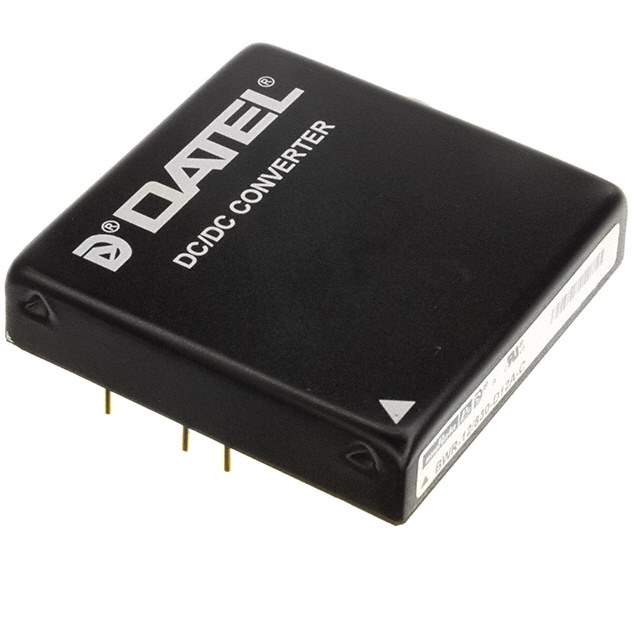

BWR-12/830-D12A-C Real Image
Same model may have multiple batches, images only for reference.

BWR-12/830-D12A-C

Part No BWR-12/830-D12A-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 830mA, 830mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 830mA, 830mA
Power (Watts) 20 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 100°C
Efficiency 83%
Mounting Through Hole
Case / Package 8-DIP Module, 7 Leads
Size / Dimension 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm)
Base Product Number BWR-12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number BWR12830D12AC,811-1730-5
Standard Package 9
Win Source Part Number 1335122-BWR-12/830-D12A-C
Ultra Librarian 3D Model Ultra Librarian BWR-12/830-D12A-C CAD Model

Description

The BWR-12/830-D12A-C is an isolated module power supply designed for ITE (Commercial) applications.

  • Applications: ITE (Commercial)
  • Packaging: Tube
  • Outputs: Two outputs
  • Maximum Current Output: 830mA and 830mA
  • Voltage Input Range: 9V to 36V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Power Rating: 20W
  • Efficiency: 83%
  • Package: 8-DIP module, 7 leads form
  • Dimensions: 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm)
  • Mounting: Through-hole
  • Temperature Range: -40°C ~ 100°C
  • MSL Level: 1 (Unlimited)
  • ROHS3 Compliant: Yes
