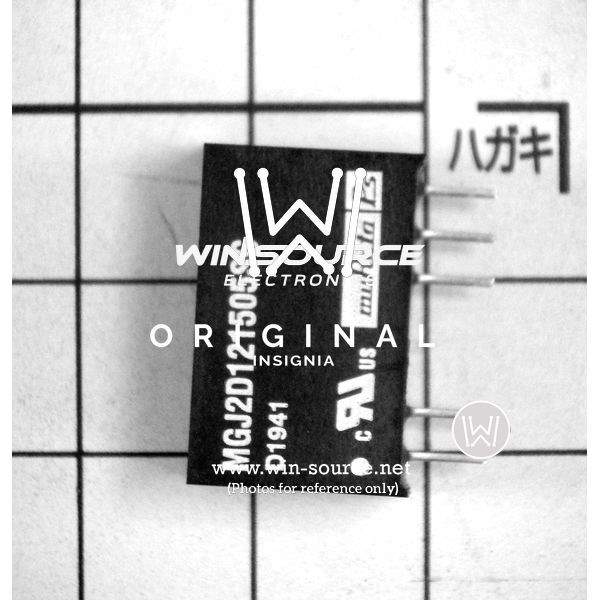

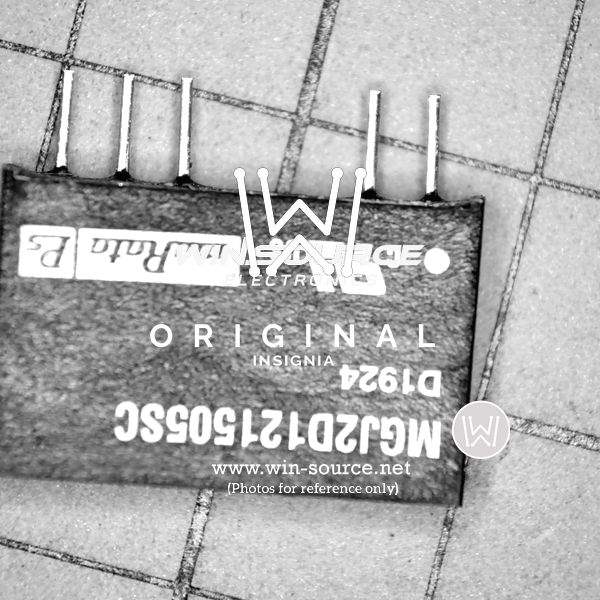

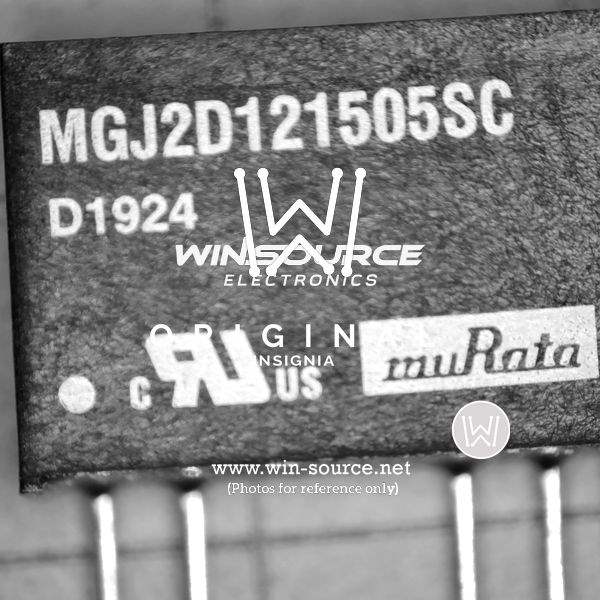

MGJ2D121505SC Real Image MGJ2D121505SC real image12637 MGJ2D121505SC Real Image1 MGJ2D121505SC Real Image2
Same model may have multiple batches, images only for reference.
MGJ2D121505SC Real Image MGJ2D121505SC real image12637 MGJ2D121505SC Real Image1 MGJ2D121505SC Real Image2
MGJ2D121505SC Real Image MGJ2D121505SC real image12637 MGJ2D121505SC Real Image1 MGJ2D121505SC Real Image2
Same model may have multiple batches, images only for reference.

MGJ2D121505SC

Part No MGJ2D121505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 5.2kVDC Isolated 2W Gate Drive DC/DC Converters
Datasheet
MGJ2D121505SC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MGJ2
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -5V
Current - Output (Maximum) 80mA, 40mA
Power (Watts) 2W
Voltage - Isolation 5.2kV (5200V)
Applications ITE (Commercial), Medical
Features SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 80%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Win Source Part Number 1221914-MGJ2D121505SC
Manufacturer Homepage www.murata-ps.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MGJ2D121505SC CAD Model

Description

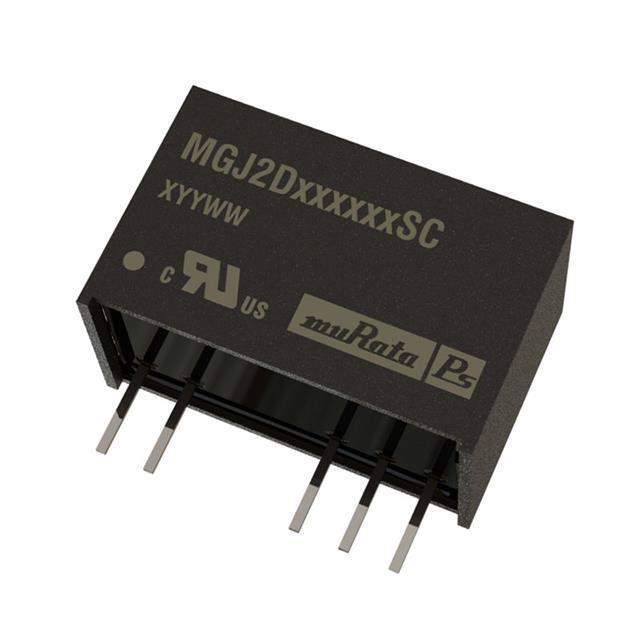

The Murata Power Solutions Inc. MGJ2D121505SC is an isolated module that comes in a 7-SIP module with 5 leads.

  • Manufacturer: Murata Power Solutions Inc.
  • Module Type: Isolated Module
  • Package: 7-SIP Module with 5 Leads
  • Applications: ITE (Commercial) and Medical
  • Maximum Power: 2W
  • Voltage Isolation: 5.2kV (5200V)
  • Outputs: 15V and -5V
  • Efficiency: 80%
  • Operating Temperature: -40°C to 100°C
  • Features: SCP
  • Mounting: Through Hole
  • Package Size: 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
  • Reliability: Popular and reliable option
