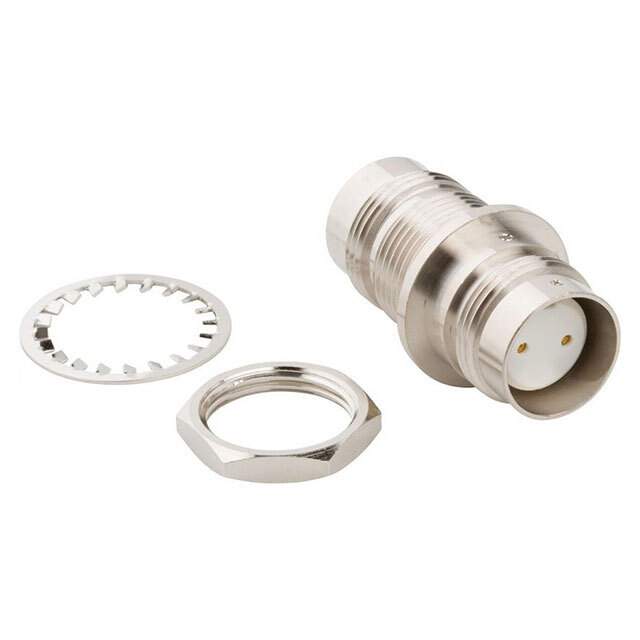

000-7925-RFX Real Image
Same model may have multiple batches, images only for reference.

000-7925-RFX

Part No 000-7925-RFX
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK TWINAX / Conn Twinax Adapter 0Hz to 0.5GHz ST RCP/RCP Gold
Datasheet
000-7925-RFX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series Twinaxial to Twinaxial
Center Gender Female to Female
Convert From (Adapter End) Twinaxial Jack, Female Socket
Convert To (Adapter End) Twinaxial Jack, Female Socket
Impedance Non-Constant
Style Straight
Mounting Panel Mount
Mounting Feature Bulkhead
Fastening Type Threaded, Threaded
Frequency - Max 500MHz
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Operating Temperature Range -65°C ~ 165°C
Win Source Part Number 790477-000-7925-RFX
Popularity Medium
Supply and Demand Status Limited
Family Name Twinax
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 000-7925-RFX CAD Model

Description

The Amphenol RF Division 790477-000-7925-RFX is a twinaxial jack-to-jack connector that has a threaded fastening type and a bulkhead mounting feature.

  • Impedance: Non-constant
  • Maximum Input Frequency: 500MHz
  • Compliance: RoHS
  • Temperature Range: -65°C to 165°C
  • Pieces: 3 (1 connector, 1 lockwasher, 1 nut)
  • Applications: Various
  • Supply and Demand Status: Limited
