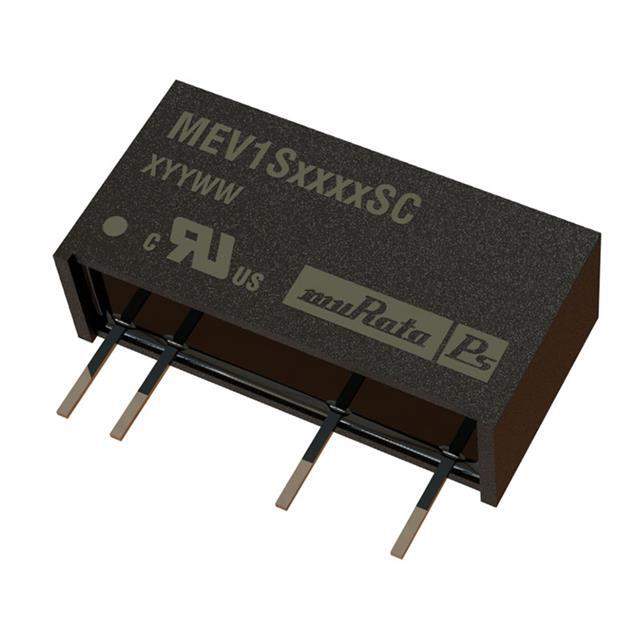

MEV1S2409SC Real Image
Same model may have multiple batches, images only for reference.

MEV1S2409SC

Part No MEV1S2409SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 3kVDC Isolated 1W Single & Dual Output DC/DC Converters | DC DC CONVERTER 9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Voltage - Input (Minimum) 21.6V
Voltage - Input (Maximum) 26.4V
Voltage - Output 1 9V
Current - Output (Maximum) 111mA
Power (W) 1W
Voltage - Isolation 3kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 86.5%
Mounting Style Through Hole
Manufacturer Package 7-SIP Module, 4 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221741-MEV1S2409SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEV1S2409SC CAD Model

Description

The Murata Power Solutions Inc. Isolated Module 1221741-MEV1S2409SC is a through hole mounting style power supply with 3kV voltage isolation and 9V output.

  • Voltage Isolation: 3kV
  • Output Voltage: 9V
  • Efficiency: 86.5%
  • Maximum Output Current: 111mA
  • Application: ITE (Commercial)
  • Package: 7-SIP Module, 4 Leads
  • Operating Temperature Range: -40°C to 85°C
  • Package Quantity: 25
  • MSL Level: 1 (Unlimited)
  • Power: 1W
  • Voltage Input: 21.6V to 26.4V
  • Dimensions: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
