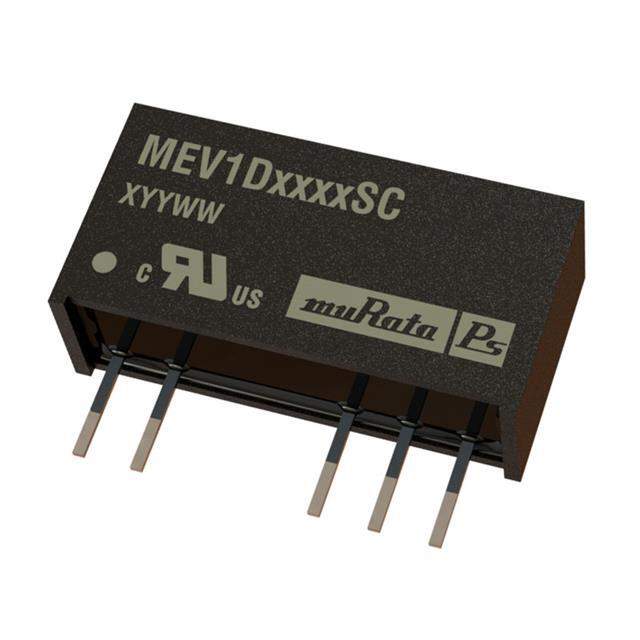

MEV1D4805SC Real Image
Same model may have multiple batches, images only for reference.

MEV1D4805SC

Part No MEV1D4805SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 43.2V - 52.8V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEV1 (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 43.2V
Voltage - Input (Max) 52.8V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MEV1D48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-2307
Standard Package 25
Win Source Part Number 1026324-MEV1D4805SC
Ultra Librarian 3D Model Ultra Librarian MEV1D4805SC CAD Model

Description

The MEV1D4805SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Manufacturer: Murata Power Solutions Inc.
  • Win Source Part Number: 1026324-MEV1D4805SC
  • Application: ITE (Commercial)
  • Package: Tube
  • Standard Package: 25
  • Outputs: 2
  • Maximum Output Current: 100mA each
  • Power Rating: 1W
  • Voltage Isolation: 3 kV
  • Input Voltage Range: 43.2V to 52.8V
  • Efficiency: 80%
  • Mounting: Through Hole
  • Package/Case: 7-SIP module, 5 leads
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Alternative Parts: RS-4809D/H3, MEA1D4805SC, MEV1D2405SC, RY-0505D, and RY-1205D
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.40.9580
