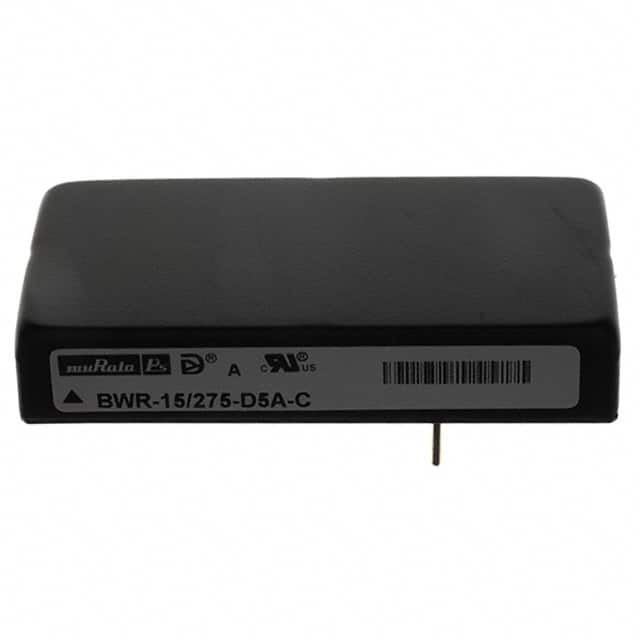

BWR-15/275-D5A-C
Same model may have multiple batches, images only for reference.

BWR-15/275-D5A-C

Part No BWR-15/275-D5A-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 8W
Datasheet
BWR-15/275-D5A-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Isolated Module DC DC Converter 2 Output 15V -15V - 275mA, 275mA 4.7V - 7.25V Input
Manufacturer Murata Power Solutions Inc.
Series BWR (10W)
Package Tube
Part Status Obsolete
Operating Temperature Range -40°C ~ 100°C
Mounting Through Hole
Package 5-DIP Module
Family Name BWR-15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1722-5, BWR15275D5AC
Quantity per package 16
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913809-BWR-15/275-D5A-C
Ultra Librarian 3D Model Ultra Librarian BWR-15/275-D5A-C CAD Model

Description

The Murata Power Solutions Inc. BWR (10W) series isolated module is a through-hole type with a package dimension of 5-DIP module.

  • Output Voltages: 15V and -15V
  • Current Rating: 275mA and 275mA
  • Input Voltage Range: 4.7V to 7.25V
  • Status: Obsolete
  • Popularity: High
  • Quantity per Package: 16
