Same model may have multiple batches, images only for reference.

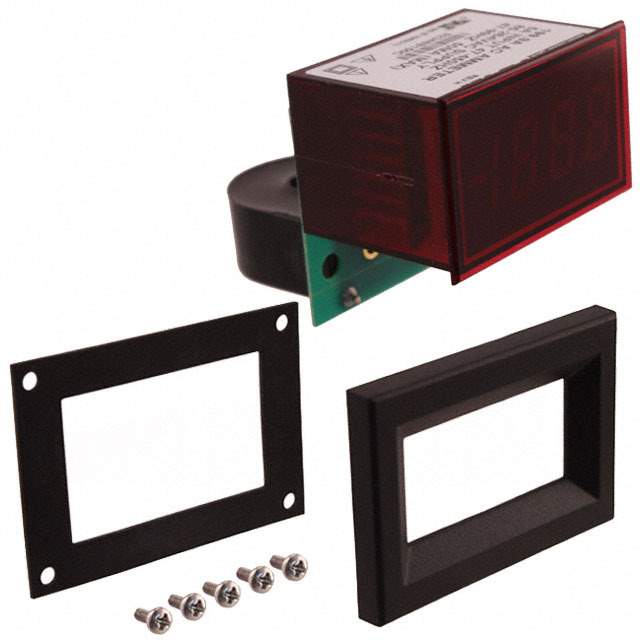

ACA5-20PC-11-AC1-RL-C Real Image
Same model may have multiple batches, images only for reference.

ACA5-20PC-11-AC1-RL-C

Part No ACA5-20PC-11-AC1-RL-C
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description AMMETER 0-750A LED PANEL MOUNT  /  Current (Ammeter) LED - Red Characters Display Panel Mount - Bezel
Datasheet
ACA5-20PC-11-AC1-RL-C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Murata Power Solutions Inc.
Series ACA5-20PC
Package Box
Product Status Obsolete
Type Current (Ammeter)
Measuring Range 0 ~ 750A
Display Type LED - Red Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.370" (9.40mm)
Voltage - Supply 85 ~ 264VAC
Panel Cutout Dimensions Rectangular - 33.93mm x 21.29mm
Mounting Type Panel Mount - Bezel
Termination Style Screw Terminal
Features Built In Current Transformer (Secondary)
Temperature Range - Operating 0°C ~ 60°C
Weight 0.079 lb (35.83 g)
Base Product Number ACA5-20PC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Standard Package 12
Win Source Part Number 1009753-ACA5-20PC-11-AC1-RL-C
Ultra Librarian 3D Model Ultra Librarian ACA5-20PC-11-AC1-RL-C CAD Model

Description

The ACA5-20PC-11-AC1-RL-C electronic component is an industrial automation and controls product manufactured by Murata Power Solutions Inc.

  • Series: Panel Meters
  • Type: Current (Ammeter)
  • Panel Cutout Dimension: 33.93mm x 21.29mm
  • Weight: 0.079 lb (35.83 g)
  • Features: Built-in Current Transformer (Secondary)
  • Display Type: LED
  • Display Color: Red Characters
  • Measuring Range: 0 ~ 750A
  • Voltage Supply: 85 ~ 264VAC
  • Temperature Range: 0°C ~ 60°C
  • MSL Level: 1 (Unlimited)
