Same model may have multiple batches, images only for reference.

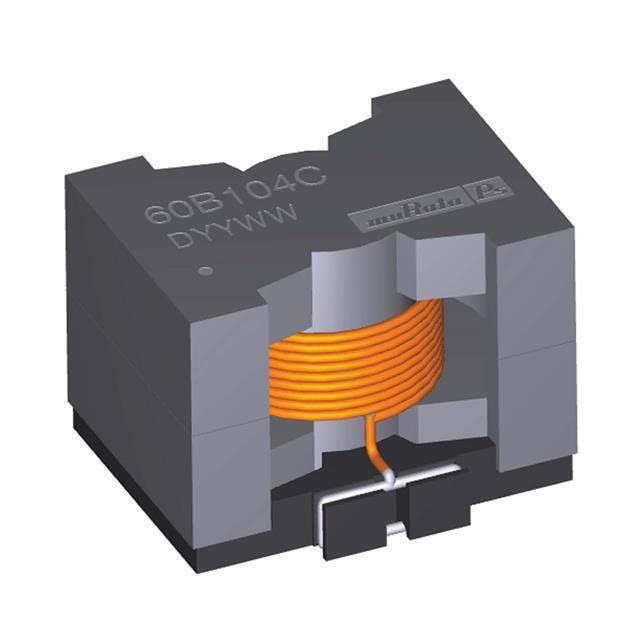

60B684C Real Image
Same model may have multiple batches, images only for reference.

60B684C

Part No 60B684C
Manufacturer Murata Power Solutions Inc.
Catalog Fixed Inductors
Description FIXED IND 680UH 3A 135 MOHM SMD / 680 µH Unshielded Wirewound Inductor 3 A 135mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Power Solutions Inc.
Series 6000B
Package Tray
Type Wirewound
Inductance 680 µH
Tolerance ±15%
Current Rating (Amps) 3 A
Shielding Unshielded
DC Resistance (DCR) 135mOhm Max
Frequency - Self Resonant 1.59MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.063" L x 0.768" W (27.00mm x 19.50mm)
Height - Seated (Max) 0.787" (20.00mm)
Base Product Number 60B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 811-2466-1-ND,811-2466-2INACTIVE,811-2466,811-2466-6INACTIVE,811-2466-1
Standard Package 30
Win Source Part Number 1039546-60B684C
Ultra Librarian 3D Model Ultra Librarian 60B684C CAD Model

Description

The 6000B series wirewound inductor is a high-quality fixed inductor, designed to provide high performance and reliability.

  • Type: Fixed Inductor
  • Inductance: 680 µH
  • Tolerance: ±15%
  • Shielding: Unshielded
  • DC Resistance: 135mOhm Max
  • Maximum Current Rating: 3A
  • Mounting: SMD (SMT)
  • Height Seated: 0.787" (20.00mm)
  • Frequency Self-Resonance: 1.59MHz
  • Operating Temperature: -40°C ~ 85°C
  • Package: Nonstandard
  • Dimensions: 1.063" L x 0.768" W (27.00mm x 19.50mm)
  • RoHS Compliant: Yes
