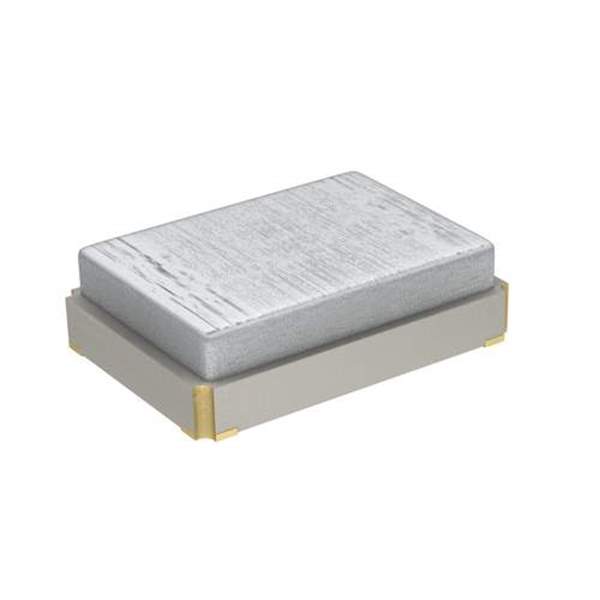

The XRCGB24M000F2P00R0 is a 24 MHz ceramic resonator manufactured by Murata Electronics North America. This resonator provides a stable and accurate clock source for a variety of electronic applications. Ceramic resonators are known for their compact size, cost-effectiveness, and ease of use compared to crystal oscillators.

Applications

• Microcontroller clock sources
• Remote controls
• Consumer electronics
• Industrial control systems
• Automotive electronics
• Wireless communication devices

Features

• Frequency: 24 MHz
• Frequency Tolerance: ±0.5%
• Frequency Stability: ±0.3% (-20°C to +80°C)
• Operating Temperature Range: -20°C to +80°C
• Load Capacitance: 12 pF
• Resonance Resistance: 30 Ohms
• Package: Small ceramic package
• RoHS Compliant: Lead-free and compliant with environmental regulations

Benefits

• Stable Frequency: Provides a stable and accurate clock source for reliable operation.
• Compact Size: Small ceramic package minimizes board space requirements.
• Cost-Effective: Offers a cost-effective alternative to crystal oscillators.
• Easy to Use: Requires minimal external components for operation.
• Wide Operating Temperature Range: Suitable for a variety of environmental conditions.

Additional Details

The XRCGB24M000F2P00R0 is designed for use in oscillator circuits where a stable and accurate clock signal is required. It is commonly used with microcontrollers and other digital devices to provide a timing reference. The ceramic resonator is a passive component and does not require a power supply to operate. However, it does require external circuitry to create a functional oscillator. The recommended circuit typically includes the resonator, a resistor, and two capacitors. The specific values of these components depend on the microcontroller and application requirements. The XRCGB24M000F2P00R0 is designed to withstand reflow soldering temperatures and is suitable for automated assembly processes.
